TXB2P019028B

Obsolete

Tusonix a Subsidiary of CTS Electronic Components

THERMAL LINK PRESS ON BLACK TO-1

Search across all available documentation for this part.

Obsolete

Tusonix a Subsidiary of CTS Electronic Components

THERMAL LINK PRESS ON BLACK TO-1

Technical Specifications

Parameters and characteristics for this part

Part	Package Cooled	Attachment Method	Material Finish	Material	Width	Width	Shape	Type	Diameter	Diameter	Length	Length	Diameter [diameter]	Diameter [diameter]	Width [y]	Width [y]	Thermal Resistance @ Natural	Width [x]	Width [x]
Tusonix a Subsidiary of CTS Electronic Components TXB2P050037ND	TO-8S	Bolt On	Dull Nickel	Aluminum	0.55 in	13.97 mm	Cylindrical	Top Mount	13.97 mm	0.55 in
Tusonix a Subsidiary of CTS Electronic Components TXB2P-032-037ND	TO-5	Bolt On Press Fit	Dull Nickel	Brass			Cylindrical	Top Mount			9.4 mm	0.37 in	9.65 mm	0.38 in	0.38 in	9.65 mm	82 °C/W
Tusonix a Subsidiary of CTS Electronic Components TXB2P045037B	TO-8S	Bolt On	Black Cadmium	Aluminum	0.55 in	13.97 mm	Cylindrical	Top Mount	13.97 mm	0.55 in
Tusonix a Subsidiary of CTS Electronic Components TXB2P019028ND	TO-18	Bolt On Press Fit	Dull Nickel	Brass			Cylindrical	Top Mount			7.11 mm	0.28 "	5.59 mm	0.22 "			108 °C/W	0.22 in	5.59 mm
Tusonix a Subsidiary of CTS Electronic Components TXB2P019028B	TO-18	Bolt On Press Fit	Black Cadmium	Brass			Cylindrical	Top Mount			7.11 mm	0.28 "	5.59 mm	0.22 "			108 °C/W	0.22 in	5.59 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

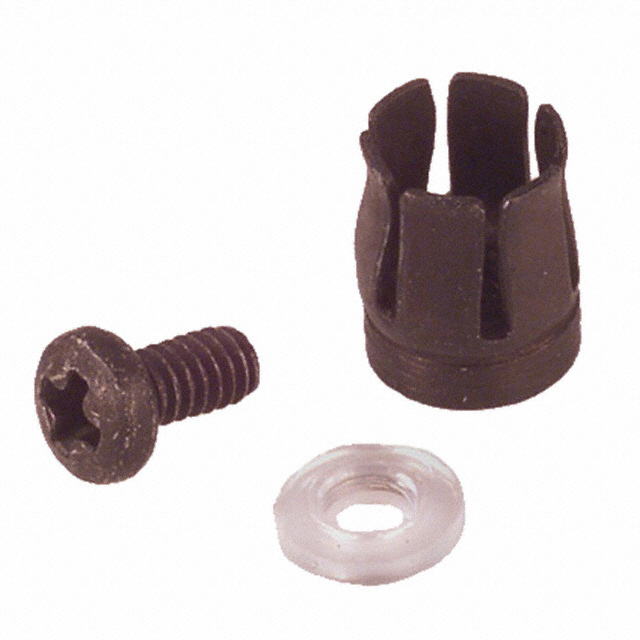

Heat Sink TO-18 Brass Top Mount

Technical documentation and resources
