581202B02500G

Active

Boyd Laconia, LLC

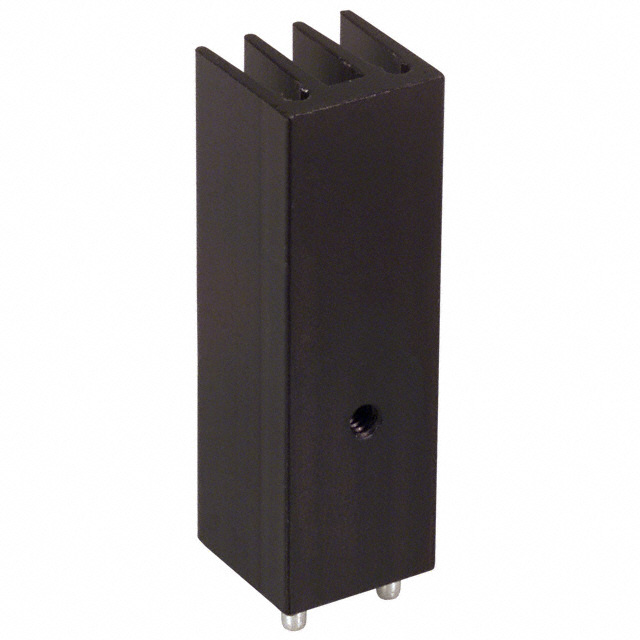

HEATSINK TO-220 2.5W BLK W/PINS

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-220 2.5W BLK W/PINS

Technical Specifications

Parameters and characteristics for this part

Specification	581202B02500G

Attachment Method	PC Pin, Bolt On
Fin Height	16.26 mm
Fin Height	0.64 in
Length	50.8 mm
Length	2 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1.5 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	4 °C/W, 300 LFM
Thermal Resistance @ Natural	12.8 °C/W
Type	Board Level, Vertical
Width [y]	16.26 mm
Width [y]	0.64 in

Part	Thermal Resistance @ Forced Air Flow	Type	Shape	Thermal Resistance @ Natural	Package Cooled	Material Finish	Material	Power Dissipation @ Temperature Rise	Attachment Method	Width [y]	Width [y]	Fin Height	Fin Height	Length	Length
Boyd Laconia, LLC 581202B02500G	4 °C/W 300 LFM	Board Level Vertical	Rectangular Fins	12.8 °C/W	TO-220	Black Anodized	Aluminum	1.5 W	Bolt On PC Pin	16.26 mm	0.64 in	16.26 mm	0.64 in	50.8 mm	2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 1.5W @ 20°C Board Level, Vertical
