R316072000

Active

Radiall USA, Inc.

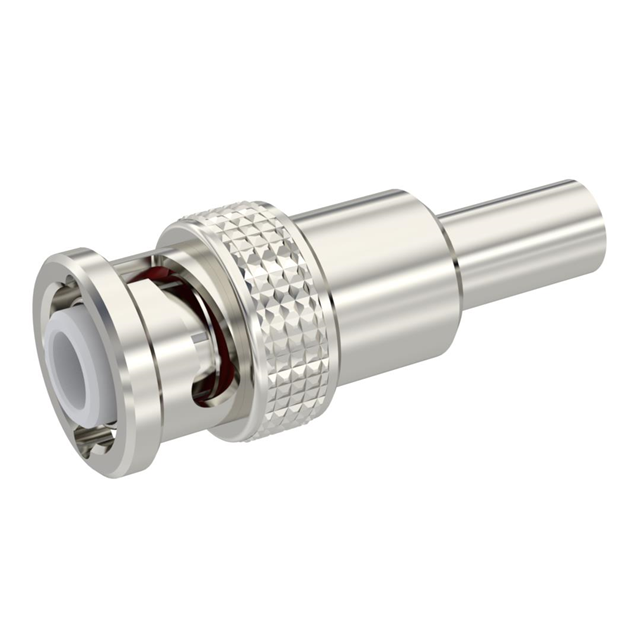

BNC HT-MHV / STRAIGHT PLUG CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HT-MHV / STRAIGHT PLUG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	R316072000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Body Finish	Mounting Type	Connector Type	Dielectric Material	Mating Cycles	Body Material	Center Contact Material	Center Contact Plating	Connector Style	Number of Ports	Frequency - Max [Max]	Fastening Type	Cable Group	Cable Group	Housing Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Impedance
Radiall USA, Inc. R316072000	Nickel	Free Hanging (In-Line)	Male Pin Plug	Polytetrafluoroethylene (PTFE)	500	Brass	Brass	Silver	BNC	1	2 GHz	Bayonet Lock	141	RG-58	Silver	Solder	155 °C	-55 °C	Clamp	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
