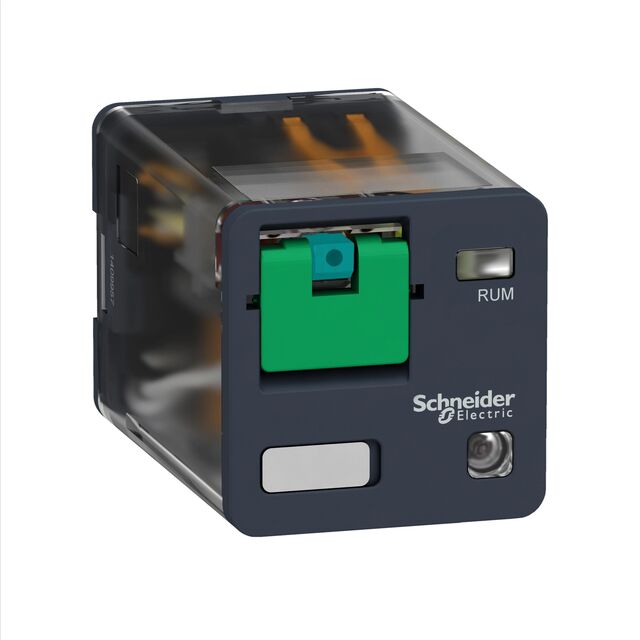

RUMF22JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO QC PINS 10A@250V12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RUMF22JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO QC PINS 10A@250V12VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RUMF22JD

Approval Agency	CSA, UL, EAC
Coil Current	100 mA
Coil Resistance	120 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Load - Max Switching	2500 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RUMF22 Series

Part	Coil Voltage	Approval Agency	Contact Form	Switching Voltage	Mounting Type	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Relay Type	Features	Coil Type	Release Time	Termination Style	Operate Time	Contact Material	Coil Current	Contact Rating (Current)	Load - Max Switching	Coil Resistance
SQUARE D BY SCHNEIDER ELECTRIC RUMF22P7	230 VAC	CSA EAC UL	DPDT (2 Form C)	28 VDC 250 VAC	Socketable	184 VAC	-40 °C	55 °C	34.5 VAC	General Purpose	Lighted Indicator Test Button	Non Latching	20 ms	Plug In	20 ms	Silver Nickel (AgNi)	33.8 mA	10 A	280 W 2500 VA	6.8 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RUMF22B7	24 VAC	CSA EAC UL	DPDT (2 Form C)	28 VDC 250 VAC	Socketable	19.2 VAC	-40 °C	55 °C	3.6 VAC	General Purpose	Lighted Indicator Test Button	Non Latching	20 ms	Plug In	20 ms	Silver Nickel (AgNi)	333.3 mA	10 A	280 W 2500 VA	72 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RUMF22BD	24 VDC	CSA EAC UL	DPDT (2 Form C)	28 VDC 250 VAC	Socketable	19.2 VDC	-40 °C	55 °C	2.4 VDC	General Purpose	Lighted Indicator Test Button	Non Latching	20 ms	Plug In	20 ms	Silver Nickel (AgNi)	51.1 mA	10 A	280 W 2500 VA	470 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RUMF22F7	120 VAC	CSA EAC UL	DPDT (2 Form C)	28 VDC 250 VAC	Socketable	96 VAC	-40 °C	55 °C	18 VAC	General Purpose	Lighted Indicator Test Button	Non Latching	20 ms	Plug In	20 ms	Silver Nickel (AgNi)	70.6 mA	10 A	280 W 2500 VA	1.7 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RUMF22JD	12 VDC	CSA EAC UL	DPDT (2 Form C)	28 VDC 250 VAC	Socketable	9.6 VDC	-40 °C	55 °C	1.2 VDC	General Purpose	Lighted Indicator Test Button	Non Latching	20 ms	Plug In	20 ms	Silver Nickel (AgNi)	100 mA	10 A	280 W 2500 VA	120 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RUMF22 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
