R191926L01

Active

Radiall USA, Inc.

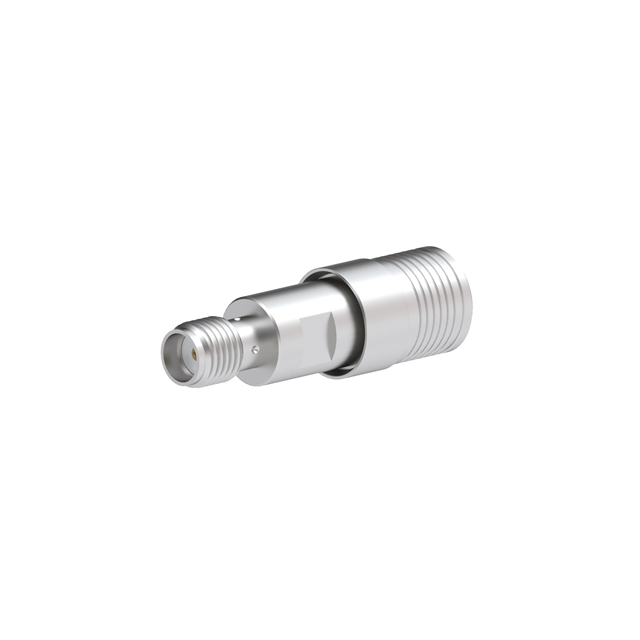

QRE MALE - SMA FEMALE STRAIGHT A

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QRE MALE - SMA FEMALE STRAIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	R191926L01

Adapter Series	SMA to QRE
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, QRE Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Push-Pull
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Dielectric Material	Adapter Series	Fastening Type	Mounting Type	Convert From (Adapter End)	Adapter Type	Body Material	Style	Conversion Type	Center Contact Material	Impedance
Radiall USA, Inc. R191926L01	Gold	Male Pin QRE Plug	165 °C	-55 °C	12.4 GHz	Polytetrafluoroethylene (PTFE)	SMA to QRE	Push-Pull Threaded	Free Hanging (In-Line)	Female Socket SMA Jack	Plug to Jack	Stainless Steel	Straight	Between Series	Beryllium Copper	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 136.66

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To QRE Plug, Male Pin 50 Ohms
