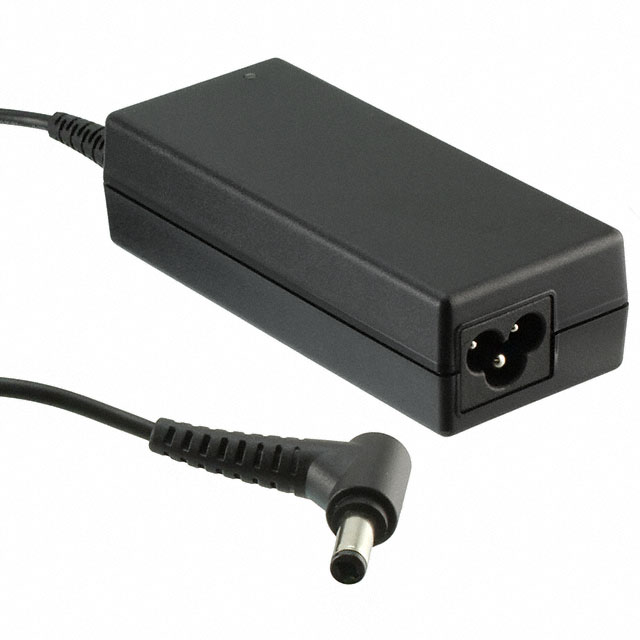

ADP-65JH HBAN
ObsoleteDelta Electronics
AC/DC DESKTOP ADAPTER 19V 65W
Deep-Dive with AI
Search across all available documentation for this part.
ADP-65JH HBAN
ObsoleteDelta Electronics
AC/DC DESKTOP ADAPTER 19V 65W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-65JH HBAN |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 3.42 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C6 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 65 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ADP-65JH Series
19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
