CG2185X2-C2
ActiveCEL
IC RF SWITCH SPDT 6GHZ 6TSSON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG2185X2-C2
ActiveCEL
IC RF SWITCH SPDT 6GHZ 6TSSON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG2185X2-C2 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 2 GHz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.4 dB |
| Isolation | 26 dB |
| P1dB | 32 dBm |

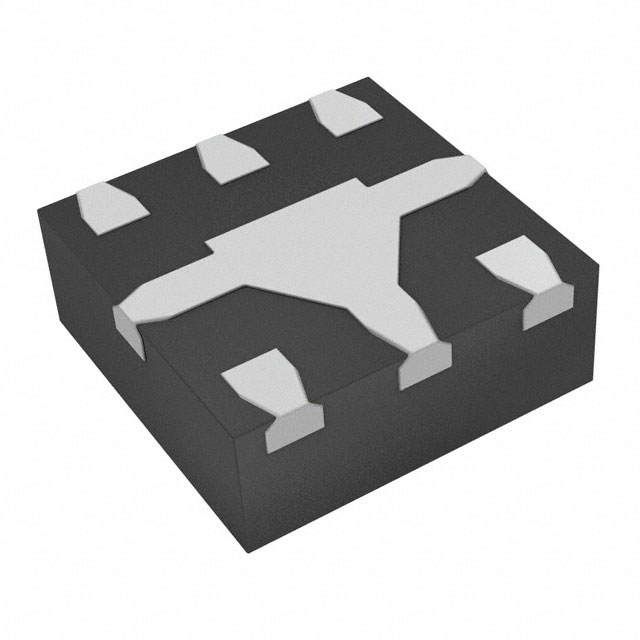

| Package / Case | 6-XFDFN Exposed Pad |
| RF Type | 802.11a/b/g/n/ac |
| Supplier Device Package | 6-TSSON |
| Test Frequency | 6 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| Digi-Reel® | 1 | $ 0.87 | ||
| Tape & Reel (TR) | 10000 | $ 0.34 | ||
| 30000 | $ 0.33 | |||
Description
General part information
CG2185 Series
RF Switch IC 802.11a/b/g/n/ac SPDT 6 GHz 50Ohm 6-TSSON
