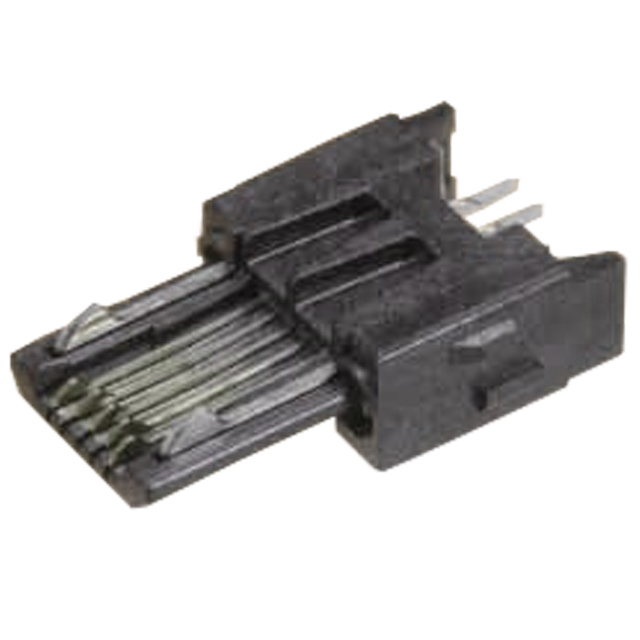

ZX40-B-5S-UNIT(31)

Active

Hirose Electric USA, Inc.

CONN PLUG USB2.0 MICRO B SLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG USB2.0 MICRO B SLD

Technical Specifications

Parameters and characteristics for this part

Specification	ZX40-B-5S-UNIT(31)

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1 A
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Type	Free Hanging (In-Line)
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Shielding	Specifications	Length [x]	Length [x]	Transfer Rate	Configuration	Features	For Use With/Related Products	Accessory Type	Voltage - Rated	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell/Shielding Material	Mounting Type	Contact Finish	Mating Cycles	Number of Contacts	Number of Ports	Gender
Hirose Electric USA, Inc. ZX40-B-5S-1000-STDA(30)	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	A Male to Micro B Male	Charge Data Transfer
Hirose Electric USA, Inc. ZX40-B-SLDA								USB - microUSB B Plug	Shielding Plate Top
Hirose Electric USA, Inc. ZX40-B-5S-500-STDA(30)	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	A Male to Micro B Male	Charge Data Transfer
Hirose Electric USA, Inc. ZX40-B-5S-UNIT(31)		USB 2.0								30 VAC	UL94 V-0	1 A	Black	Solder	-30 ░C	85 °C	USB - micro B	Stainless Steel	Free Hanging (In-Line)	Gold	10000	5	1	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Plug Connector 5 Position Free Hanging (In-Line)
