SPHRD2L3DH01A844B0

Obsolete

Samsung Semiconductor, Inc.

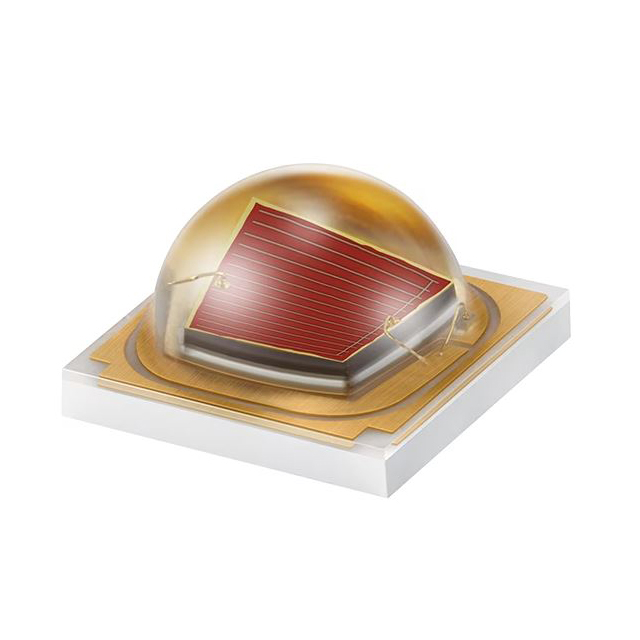

LED LH351H RED 730NM 3535

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED LH351H RED 730NM 3535

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Viewing Angle	Mounting Type	Wavelength	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [diameter]	Current - Max [Max]	Current - Test	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Wavelength [Min]	Wavelength [Max]
Samsung Semiconductor, Inc. SPHRD2L3DH20E7W41J	0.081 in	2.05 mm	130 °	Surface Mount	660 nm	2.2 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in	3 °C/W	1 A
Samsung Semiconductor, Inc. SPHRD2L3DH00D5W4M0			120 °	Surface Mount	660 nm	2.2 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in		1 A	350 mA	3535	0.086 in	2.19 mm	3535 Metric	1414
Samsung Semiconductor, Inc. SPHRD2L3DH01A844B0			120 °	Surface Mount		1.9 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in		1 A	350 mA	3535	0.086 in	2.19 mm	3535 Metric	1414	720 nm	740 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color LH351H Red 730nm (720nm ~ 740nm) 1414 (3535 Metric)

Technical documentation and resources
