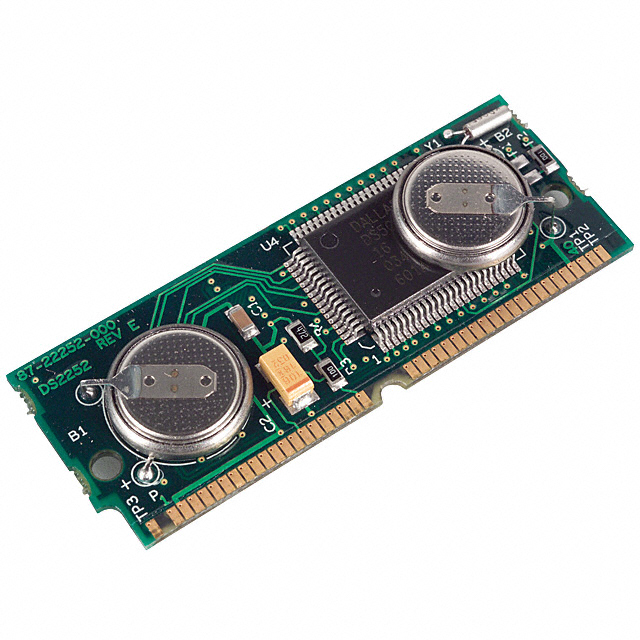

DS2250T-64-16

Obsolete

Analog Devices Inc./Maxim Integrated

IC MCU 8BIT 64KB NVSRAM 40SIMM

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC MCU 8BIT 64KB NVSRAM 40SIMM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Core Size	Program Memory Type	Supplier Device Package	Oscillator Type	Core Processor	Connectivity	Speed	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Mounting Type	Package / Case
Analog Devices Inc./Maxim Integrated DS2250T-32-16	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	32 KB	Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250T-32-16+	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	32 KB	Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250T-64-16+	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	64 KB	Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250-64-16	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	64 KB	Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250-8-8	70 °C	8-Bit		40-SIMM	External	8051	SIO UART/USART	8 MHz		4.75 V	5.25 V		Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250-32-16	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	32 KB	Surface Mount	40-SIMM
Analog Devices Inc./Maxim Integrated DS2250T-64-16	70 °C	8-Bit	NVSRAM	40-SIMM	External	8051	SIO UART/USART	16 MHz	32	4.75 V	5.25 V	64 KB	Surface Mount	40-SIMM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8051 DS225x Microcontroller IC 8-Bit 16MHz 64KB (64K x 8) NVSRAM 40-SIMM

Technical documentation and resources

No documents available
