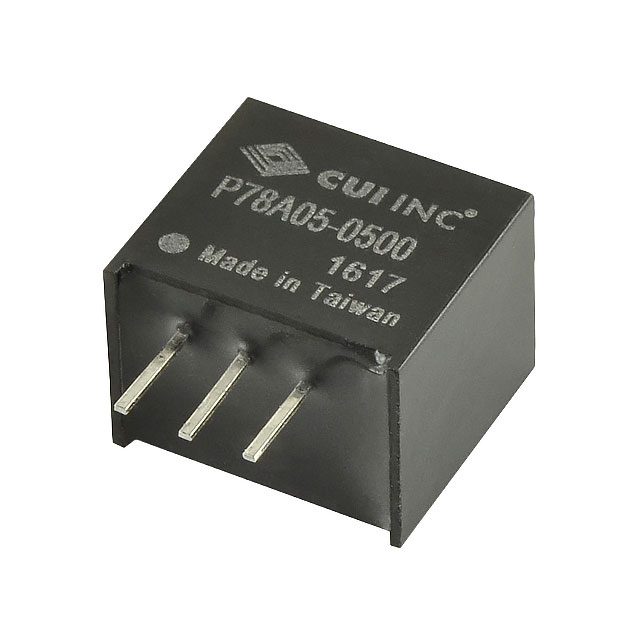

P78A05-0500

Active

CUI Inc.

DC DC CONVERTER 5V 3W

Search across all available documentation for this part.

Active

CUI Inc.

DC DC CONVERTER 5V 3W

Technical Specifications

Parameters and characteristics for this part

Specification	P78A05-0500

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	92 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	3 W
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.6 mm
Size / Dimension [y]	0.33 in
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	10.4 mm
Size / Dimension [z]	0.41 "
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	28 V
Voltage - Input (Min) [Min]	7 V
Voltage - Output 1	5 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Type	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Applications
CUI Inc. P78A05-0500	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	3 W	Linear Regulator Replacement	5 V	500 mA	1	7 V	SCP	3-SIP Module	85 °C	-40 °C	Through Hole	28 V	92 %	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 5V 500mA 7V - 28V Input

Technical documentation and resources

No documents available
