20GEEW3E-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PNL WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	20GEEW3E-R

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C20
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	20 A
Features	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	34.5 mm
Panel Cutout Dimensions [y]	26.5 mm
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Termination	Features	Connector Style	Connector Type	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Current Rating - Appliance Inlet	Accomodates a Fuse	Approval Agency
Delta Electronics 20GEEW3E-R	115 VAC	250 VAC	Wire Leads	Bleed Resistor	IEC 320-C20	Male Blades Receptacle	Flange Panel Mount	34.5 mm	26.5 mm	Filtered (EMI RFI) - Commercial	20 A		CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

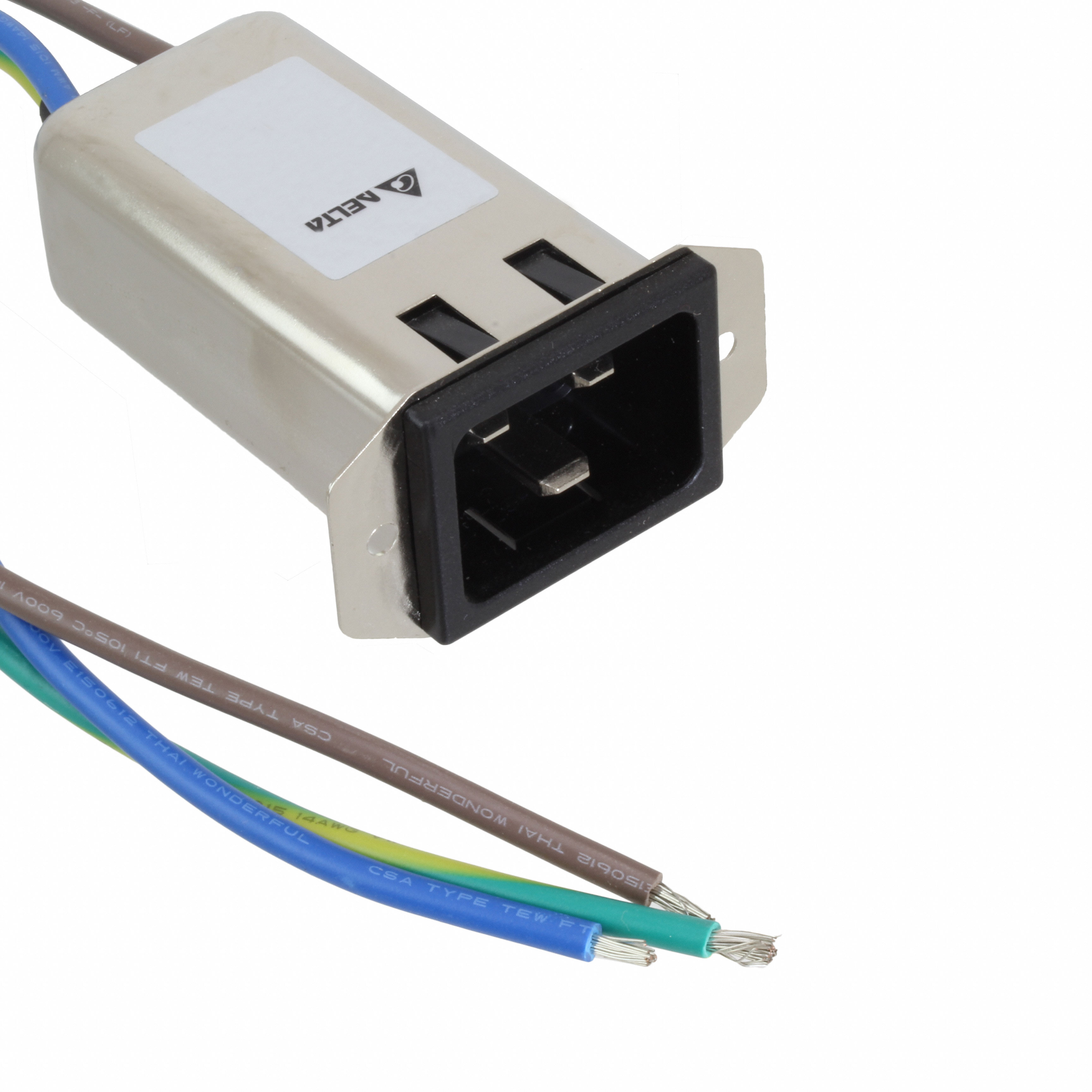

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange

Technical documentation and resources
