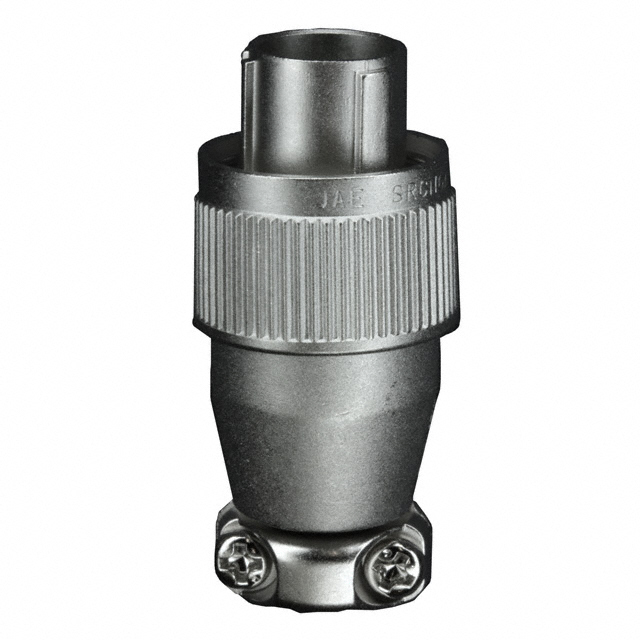

SRCN6A13-5P
ActiveJAE Electronics
CONN PLUG MALE 5P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SRCN6A13-5P
ActiveJAE Electronics
CONN PLUG MALE 5P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN6A13-5P |
|---|---|
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Cable Opening [custom] | 0.335 in |
| Cable Opening [custom] | 8.5 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Insert Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 13-5 |
| Voltage Rating | 350 V, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.01 | |
| 10 | $ 9.01 | |||
| 25 | $ 8.49 | |||
| 50 | $ 8.27 | |||
| 100 | $ 8.05 | |||
| 250 | $ 7.18 | |||
| 500 | $ 6.75 | |||
| 1000 | $ 5.96 | |||
Description
General part information
SRCN6A13 Series
5 Position Circular Connector Plug, Male Pins Solder Cup
