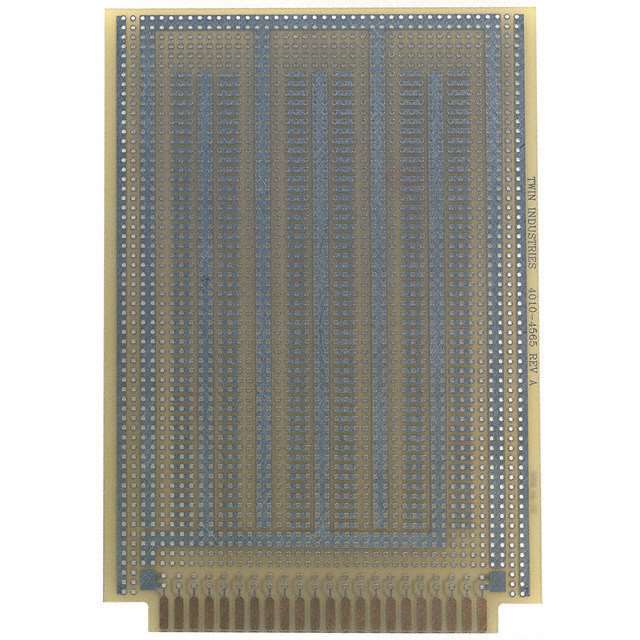

4010-4565

Active

TWIN INDUSTRIES

PLUGBOARD CARD EDGE

Search across all available documentation for this part.

Active

TWIN INDUSTRIES

PLUGBOARD CARD EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	4010-4565

Circuit Pattern	Pad Per Hole (Round), Ground Plane
Edge Contacts	0.156 in, 44
Edge Contacts	3.96 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Proto Board Type	Plugboard, Card Edge
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	4.5 in
Size / Dimension [y]	114.3 mm

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Circuit Pattern	Proto Board Type	Edge Contacts	Edge Contacts
TWIN INDUSTRIES 4010-4565	165.1 mm	4.5 in	114.3 mm	6.5 in	2.54 mm	0.1 in	Ground Plane Pad Per Hole (Round)	Plugboard Card Edge	0.156 in 44	3.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plugboard, Card Edge Pad Per Hole (Round), Ground Plane 0.100" (2.54mm)
