R180415007
ActiveRadiall USA, Inc.

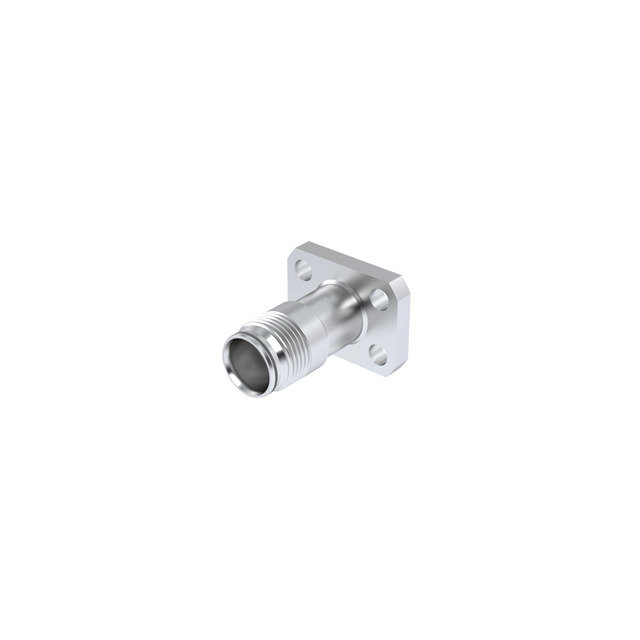

NEX 10 F STR SQFP SD.085 C50
Deep-Dive with AI
Search across all available documentation for this part.
R180415007
ActiveRadiall USA, Inc.
NEX 10 F STR SQFP SD.085 C50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R180415007 |
|---|---|
| Body Material | Brass |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | NEX10 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 20 GHz |
| Impedance | 50 Ohms |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
R18041 Series
| Part | Center Contact Material | Contact Termination | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Dielectric Material | Housing Color | Number of Ports | Cable Group | Connector Style | Voltage Rating | Body Finish | Shield Termination | Ingress Protection | Connector Type | Center Contact Plating | Body Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Beryllium Copper | Solder | Flange | -55 °C | 125 °C | 20 GHz | Polytetrafluoroethylene (PTFE) | Silver | 1 | RG-405 (.085" Semi Rigid) | NEX10 | 335 V | White Bronze | Solder | IP68 - Dust Tight Waterproof | Female Socket Jack | Silver | Brass | 50 Ohms |
Radiall USA, Inc. | Beryllium Copper | Solder | Flange | -55 °C | 125 °C | 20 GHz | Polytetrafluoroethylene (PTFE) | 1 | RG-405 (.085" Semi Rigid) | NEX10 | 335 V | Solder | Female Socket Jack | Silver | Brass | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.64 | |
| 10 | $ 13.87 | |||
| 25 | $ 13.33 | |||
| 50 | $ 12.80 | |||
| 100 | $ 12.09 | |||
| 300 | $ 11.02 | |||
| 500 | $ 10.31 | |||
| 1000 | $ 9.46 | |||
Description
General part information
R18041 Series
NEX10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
