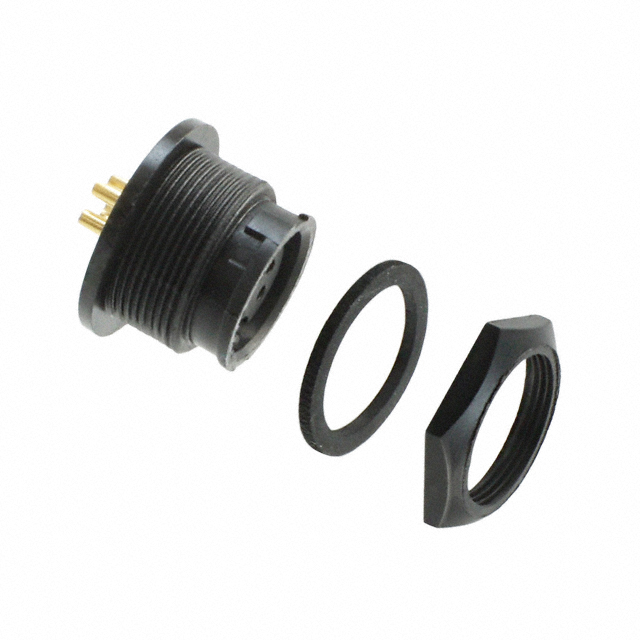

4381-4SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4381-4SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4381-4SG-300 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.91 | |
| 10 | $ 5.35 | |||
| 25 | $ 5.05 | |||
| 50 | $ 4.93 | |||
| 100 | $ 4.68 | |||
| 300 | $ 4.34 | |||
Description
General part information
4381-4SG Series
4 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
