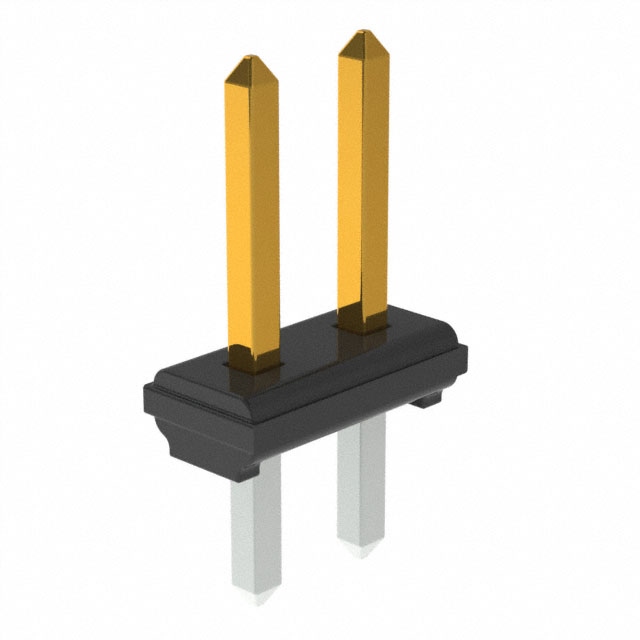

XJ8C-0211

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 2POS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 2POS

Technical Specifications

Parameters and characteristics for this part

Specification	XJ8C-0211

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Length - Mating [x]	4.3 mm
Contact Length - Mating [x]	0.169 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.6 mm
Overall Contact Length	0.339 in
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

Part	Material Flammability Rating	Termination	Connector Type	Contact Finish - Mating	Style	Shrouding	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Insulation Color	Contact Material	Number of Positions	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Rows	Insulation Material
Omron Electronics Inc-EMC Div XJ8C-0411	UL94 V-0	Solder	Header	Gold	Board to Board Cable	Unshrouded	Square	2.54 mm	0.1 in	0.15 µm	5.9 µin	Male Pin	105 ░C	-55 °C	All	8.6 mm	0.339 in	2 A	Black	Brass Nickel	4	300 VDC	0.11 in	2.79 mm	1.5 mm	0.059 "	Through Hole	4.3 mm	0.169 in	0.1 in	2.54 mm	Push-Pull	2	Polyphenylene Sulfide (PPS) Glass Filled
Omron Electronics Inc-EMC Div XJ8C-0211	UL94 V-0	Solder	Header	Gold	Board to Board Cable	Unshrouded	Square	2.54 mm	0.1 in	0.15 µm	5.9 µin	Male Pin	105 ░C	-55 °C	All	8.6 mm	0.339 in	2 A	Black	Brass Nickel	2	300 VDC	0.11 in	2.79 mm	1.5 mm	0.059 "	Through Hole	4.3 mm	0.169 in			Push-Pull	2	Polyphenylene Sulfide (PPS) Glass Filled
