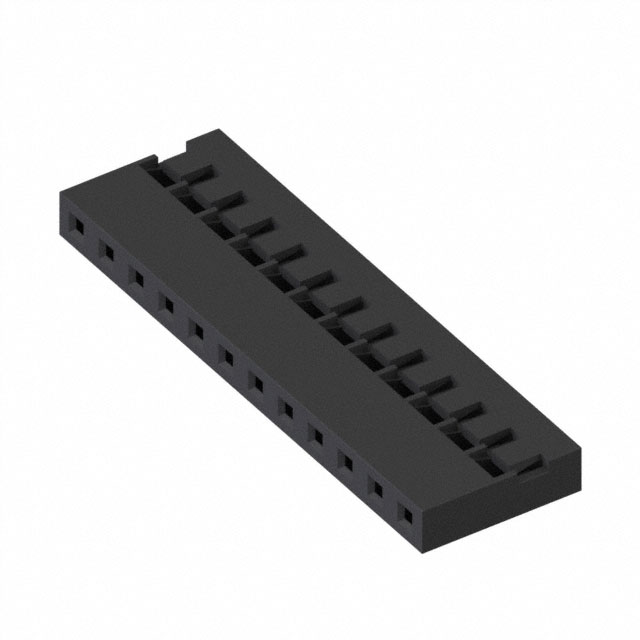

M22-3011200

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,12 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,12 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Pitch [x]	Pitch [x]	Number of Positions	Color	Contact Type	Number of Rows	Connector Type	Mounting Type	Note	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M22-3011800	Thermoplastic	0.079 in	2 mm	18	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
Harwin Inc. M22-3012000	Thermoplastic	0.079 in	2 mm	20	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
Harwin Inc. M22-3010400	Thermoplastic	0.079 in	2 mm	4	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
Harwin Inc. M22-3010700	Thermoplastic	0.079 in	2 mm	7	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
Harwin Inc. M22-3010200	Thermoplastic	0.079 in	2 mm	2	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
Harwin Inc. M22-3011200	Thermoplastic	0.079 in	2 mm	12	Black	Female Socket	1	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Crimp	-25 °C	85 °C
