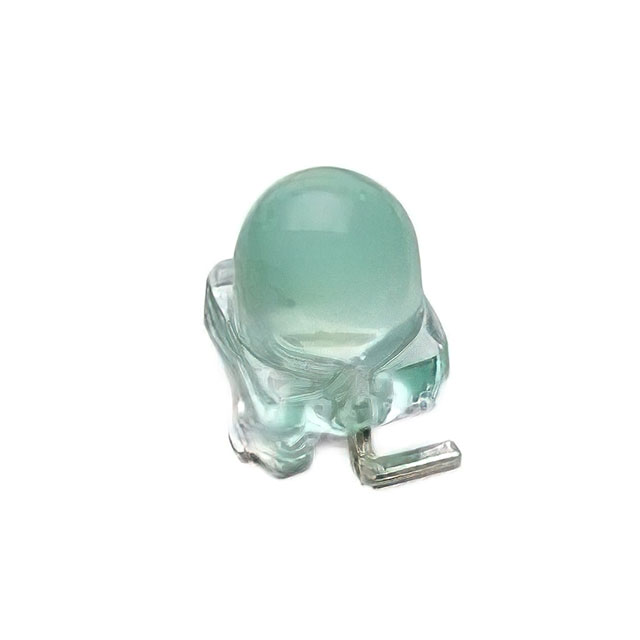

AEMD-CE3L-XZC02
ActiveBroadcom Limited
LED CYAN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AEMD-CE3L-XZC02 |
|---|---|
| Color | Cyan |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Size [diameter] | 3.9 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 11600 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Viewing Angle | 33 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 505 nm |
| Wavelength - Peak | 501 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 0.98 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 0.98 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.63 | |||
| Tape & Reel (TR) | 1000 | $ 0.58 | ||
| 2000 | $ 0.55 | |||
| 3000 | $ 0.54 | |||
| 5000 | $ 0.52 | |||
| 7000 | $ 0.51 | |||
| 10000 | $ 0.50 | |||
Description
General part information
AEMD-CE3L Series
Cyan 505nm LED Indication - Discrete 3V 3-SMD, Gull Wing
