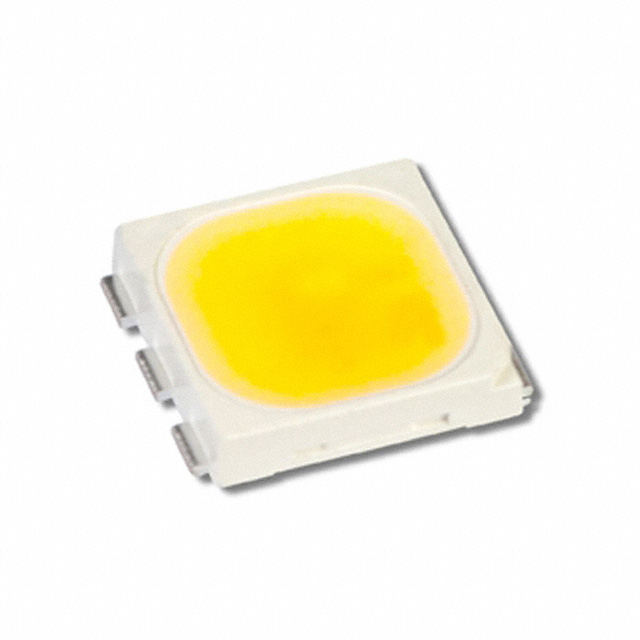

STW8T16C-Q0S0-HA
ActiveSeoul Semiconductor
LED ACRICH WARM WHT 2700K 5050
Deep-Dive with AI
Search across all available documentation for this part.
STW8T16C-Q0S0-HA
ActiveSeoul Semiconductor
LED ACRICH WARM WHT 2700K 5050
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STW8T16C-Q0S0-HA |
|---|---|
| CCT (K) | 2700 K |
| CCT (K) [Max] | 3200 K |
| CCT (K) [Min] | 2600 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 100 mA |
| Current - Test | 65 mA |
| Flux @ 25°C, Current - Test | 26 lm |
| Flux @ 25°C, Current - Test [Max] | 30 lm |
| Flux @ 25°C, Current - Test [Min] | 23 lm |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | 5050 |
| Thermal Resistance of Package [custom] | 14 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| Tape & Reel (TR) | 1200 | $ 0.24 | ||
| 2400 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 12000 | $ 0.21 | |||
| 30000 | $ 0.21 | |||
Description
General part information
STW8T16 Series
LED Lighting Acrich White, Warm 2700K (2600K ~ 3200K) 3-Step MacAdam Ellipse 3.05V 65mA 120° 2020 (5050 Metric)
Documents
Technical documentation and resources
No documents available
