FH30-60S-0.3SHW(98)

Active

Hirose Electric USA, Inc.

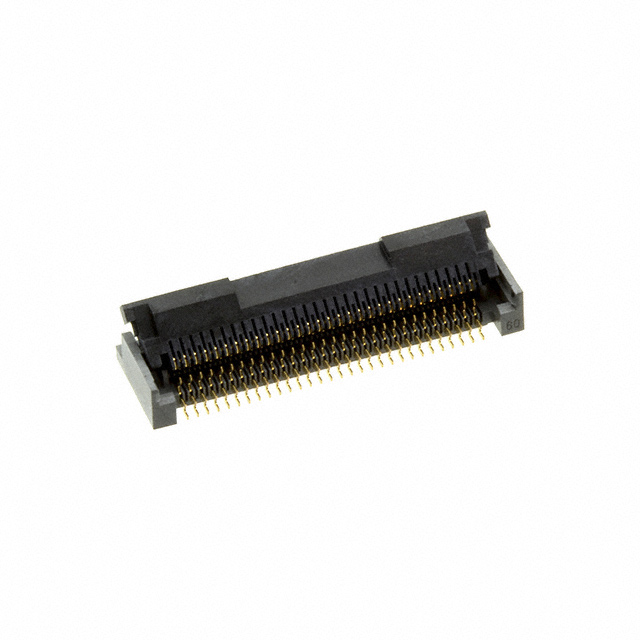

CONN FPC BOTTOM 60POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FH30-60S-0.3SHW(98)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 60POS 0.3MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH30-60S-0.3SHW(98)

Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	150 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.118 in
Height Above Board	3 mm
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Rotary Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder

FH30 Series

Part	FFC, FCB Thickness	Locking Feature	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flat Flex Type	Height Above Board	Height Above Board	Material Flammability Rating	Current Rating (Amps)	Connector/Contact Type	Cable End Type	Contact Finish	Contact Material	Termination	Mounting Type	Mating Cycles	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. FH30M-80S-0.4SHW(98)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	80	FPC	0.118 in	3 mm	UL94 V-0	300 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.016 in	0.4 mm
Hirose Electric USA, Inc. FH30-90S-0.3SHW(05)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	90	FPC	0.118 in	3 mm	UL94 V-0	150 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.012 in	0.3 mm
Hirose Electric USA, Inc. FH30-80S-0.3SHW(05)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	80	FPC	0.118 in	3 mm	UL94 V-0	150 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.012 in	0.3 mm
Hirose Electric USA, Inc. FH30-80S-0.3SHW(98)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	80	FPC	0.118 in	3 mm	UL94 V-0	150 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.012 in	0.3 mm
Hirose Electric USA, Inc. FH30M-96S-0.4SHW(05)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	96	FPC	0.118 in	3 mm	UL94 V-0	300 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.016 in	0.4 mm
Hirose Electric USA, Inc. FH30-90S-0.3SHW(98)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	90	FPC	0.118 in	3 mm	UL94 V-0	150 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.012 in	0.3 mm
Hirose Electric USA, Inc. FH30-60S-0.3SHW(98)	0.3 mm	Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	85 °C	-40 °C	60	FPC	0.118 in	3 mm	UL94 V-0	150 mA	Contacts Bottom	Tabbed	Gold	Phosphor Bronze	Solder	Surface Mount Right Angle	20	0.012 in	0.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.78
		10	$ 7.90
		25	$ 7.44
		50	$ 7.25
		100	$ 7.06
		250	$ 6.30
	Digi-Reel®	1	$ 8.78
		10	$ 7.90
		25	$ 7.44
		50	$ 7.25
		100	$ 7.06
		250	$ 6.30
	Tape & Reel (TR)	500	$ 5.92
		1000	$ 5.23
		1500	$ 5.08

Description

General part information

FH30 Series

60 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
