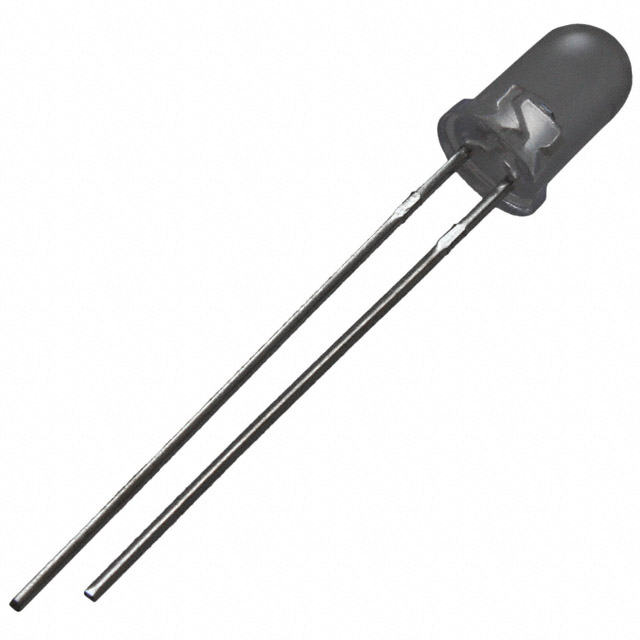

PT334-6C

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW RAD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PT334-6C

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	T 1 3/4, Radial
Package / Case [diameter]	5 mm
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [diameter]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Wavelength	Mounting Type	Current - Dark (Id) (Max) [Max]
Everlight Electronics Co Ltd PT334-6B	Top View	-25 °C	85 °C	5 mm	Radial T 1 3/4	30 V	20 mA	940 nm	Through Hole	100 nA
Everlight Electronics Co Ltd PT334-6C	Top View	-40 °C	85 °C	5 mm	Radial T 1 3/4	30 V	20 mA	940 nm	Through Hole	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View Radial, 5mm Dia (T 1 3/4)
