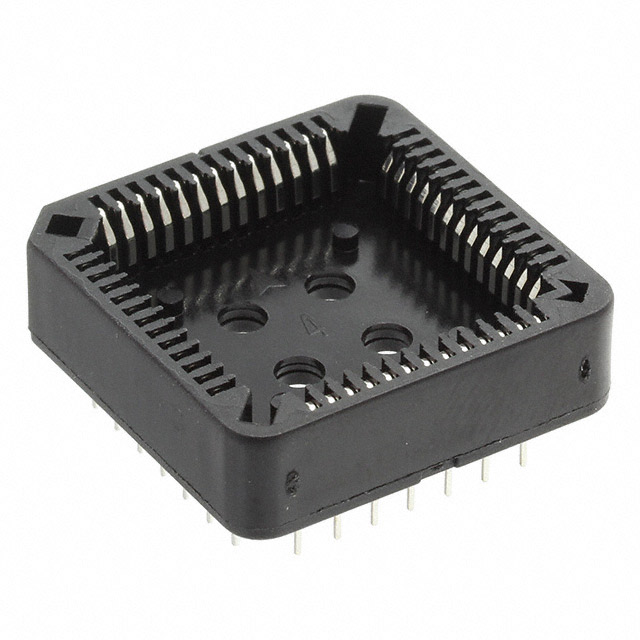

ED052PLCZ

Active

On Shore Technology Inc.

CONN SOCKET PLCC 52POS TIN

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN SOCKET PLCC 52POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	ED052PLCZ

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.118 in
Termination Post Length	3 mm
Type	PLCC

Part	Mounting Type	Housing Material	Features	Contact Resistance	Contact Finish - Post	Termination Post Length	Termination Post Length	Contact Material - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Type	Material Flammability Rating	Termination	Contact Material - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Post	Pitch - Post
On Shore Technology Inc. ED052PLCZ	Through Hole	Polybutylene Terephthalate (PBT)	Closed Frame	30 mOhm	Tin	0.118 in	3 mm	Phosphor Bronze	0.1 in	2.54 mm	1 A	PLCC	UL94 V-0	Solder	Phosphor Bronze	105 ░C	-55 °C	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	88	$ 1.30

General part information

52 (2 x 26) Pos PLCC Socket Tin Through Hole
