APHCM2012ZGCK-F01

Active

Kingbright

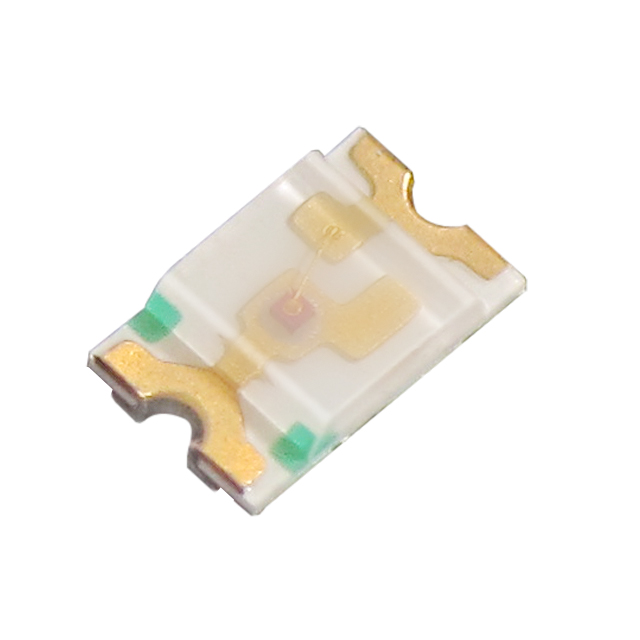

LED GREEN CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APHCM2012ZGCK-F01

Active

Kingbright

LED GREEN CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APHCM2012ZGCK-F01

Color	Green
Configuration	Independent
Current - Test	20 mA
Height (Max) [Max] [z]	0.5 mm
Lens Color	Colorless
Lens Size [x]	1.25 mm
Lens Size [y]	1.2 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	350 mcd
Mounting Type	Surface Mount
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.25 mm
Supplier Device Package	2-SMD
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	525 nm
Wavelength - Peak	515 nm

APHCM2012 Series

Part	Current - Test	Millicandela Rating	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Lens Color	Mounting Type	Configuration	Lens Transparency	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Color	Viewing Angle	Height (Max) [Max] [z]	Lens Style	Wavelength - Dominant
Kingbright APHCM2012SURCK-F01	20 mA	80 mcd	1.3 mm	1.25 mm	1.95 V	Colorless	Surface Mount	Standard	Clear	Chip LED	0805	2 mm	1.25 mm	645 nm	Red	110 °	0.4 mm	Rectangle with Flat Top	630 nm
Kingbright APHCM2012ZGC/G-F01	20 mA	700 mcd	1.25 mm	1.2 mm	3.2 V	Colorless	Surface Mount	Independent	Clear	2-SMD	0805	2 mm	1.25 mm	520 nm	Green	110 °	0.5 mm	Rectangle with Flat Top	525 nm
Kingbright APHCM2012ZGC-F01	20 mA	400 mcd	1.3 mm	1.25 mm	3.3 V	Colorless	Surface Mount	Standard	Clear	Chip LED	0805	2 mm	1.25 mm	515 nm	Green	110 °	0.4 mm	Rectangle with Flat Top	525 nm
Kingbright APHCM2012SECK-F01	20 mA	180 mcd	1.3 mm	1.25 mm	2.1 V	Colorless	Surface Mount	Standard	Clear	Chip LED	0805	2 mm	1.25 mm	610 nm		110 °	0.4 mm	Rectangle with Flat Top	601 nm
Kingbright APHCM2012QBC/D-F01	20 mA	100 mcd	1.3 mm	1.25 mm	3.3 V	Colorless	Surface Mount	Standard	Clear	Chip LED	0805	2 mm	1.25 mm	460 nm	Blue	110 °	0.4 mm	Rectangle with Flat Top	465 nm
Kingbright APHCM2012SYCK-F01	20 mA	150 mcd	1.3 mm	1.25 mm	2 V	Colorless	Surface Mount	Standard	Clear	Chip LED	0805	2 mm	1.25 mm	590 nm	Yellow	110 °	0.4 mm	Rectangle with Flat Top	590 nm
Kingbright APHCM2012VBC/D	20 mA	180 mcd	1.25 mm	1.2 mm	3.3 V	Colorless	Surface Mount	Independent	Clear	2-SMD	0805	2 mm	1.25 mm	465 nm	Blue	140 °	0.5 mm	Rectangle with Flat Top	470 nm
Kingbright APHCM2012ZGCK-F01	20 mA	350 mcd	1.25 mm	1.2 mm	3.3 V	Colorless	Surface Mount	Independent	Clear	2-SMD	0805	2 mm	1.25 mm	515 nm	Green	110 °	0.5 mm	Rectangle with Flat Top	525 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.31
		100	$ 0.18
		1000	$ 0.14
	Digi-Reel®	1	$ 0.51
		10	$ 0.31
		100	$ 0.18
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.10

Description

General part information

APHCM2012 Series

Green 525nm LED Indication - Discrete 3.3V 0805 (2012 Metric)
