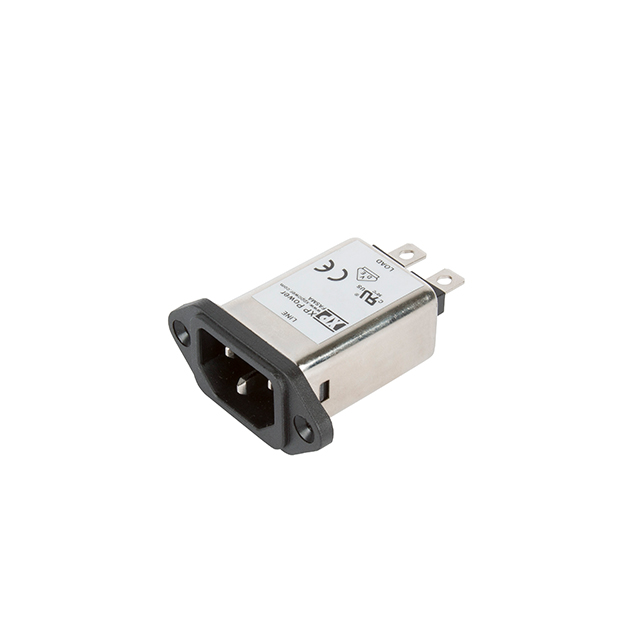

FASMA10SFR

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	FASMA10SFR

Accomodates a Fuse	False
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Bleed Resistor, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	21.6 mm
Panel Cutout Dimensions [y]	28.8 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	230 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Connector Style	Mounting Type	Connector Type	Current Rating - Filter	Filter Type	Material Flammability Rating	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Termination	Termination	Termination	Accomodates a Fuse	Features
XP POWER FASMA10SFR	IEC 320-C14	Flange Panel Mount	Male Blades Receptacle	10 A	Filtered (EMI RFI) - Commercial Medical	UL94 V-2	115 VAC	230 VAC	28.8 mm	21.6 mm	10 A	0.25 in	6.3 mm	Quick Connect		Bleed Resistor Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	35	$ 6.21

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
