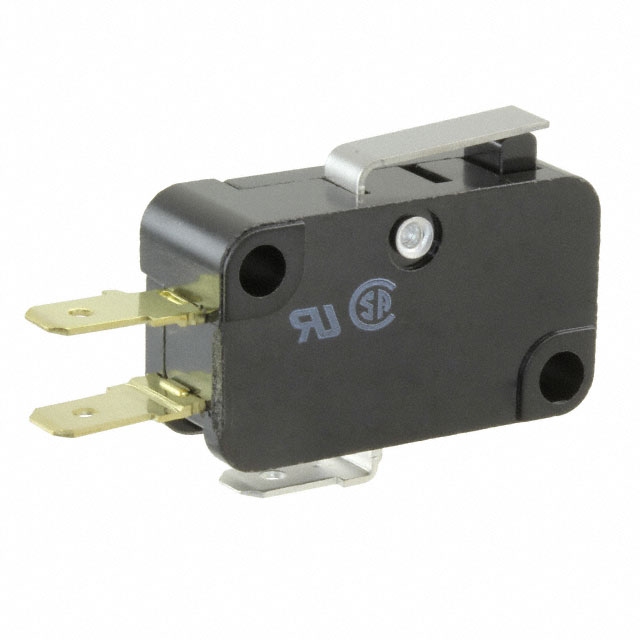

V-101-1C24

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Pretravel	Pretravel	Voltage Rating - DC	Release Force	Ingress Protection	Mounting Type	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Mechanical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Circuit	Operating Force	Actuator Type	Termination Style	Termination Style
Omron Electronics Inc-EMC Div V-101-1A5	0.79 mm	0.031 in	0.063 in	1.6 mm	125 VDC	50 gf	IP40	Chassis Mount	0.6 mm	0.025 in	250 V	0.6 in	15.2 mm	50000000 Cycles	On-Mom	-25 °C	80 C	300000 Cycles	SPDT	200 gf	Lever Straight	Quick Connect Solder	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div V-101-1C25	0.79 mm	0.031 in	0.063 in	1.6 mm	125 VDC	50 gf	IP40	Chassis Mount	0.6 mm	0.025 in	250 V	0.6 in	15.2 mm	50000000 Cycles	On-Mom	-25 °C	80 C	300000 Cycles	SPDT	200 gf	Lever Straight	Quick Connect - 0.187" (4.7mm)
Omron Electronics Inc-EMC Div V-101-1C24	0.79 mm	0.031 in	0.063 in	1.6 mm	125 VDC	15 gf	IP40	Chassis Mount	0.6 mm	0.025 in	250 V	0.6 in	15.2 mm	50000000 Cycles	On-Mom	-25 °C	80 C	300000 Cycles	SPDT	100 gf	Lever Straight	Quick Connect - 0.187" (4.7mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
