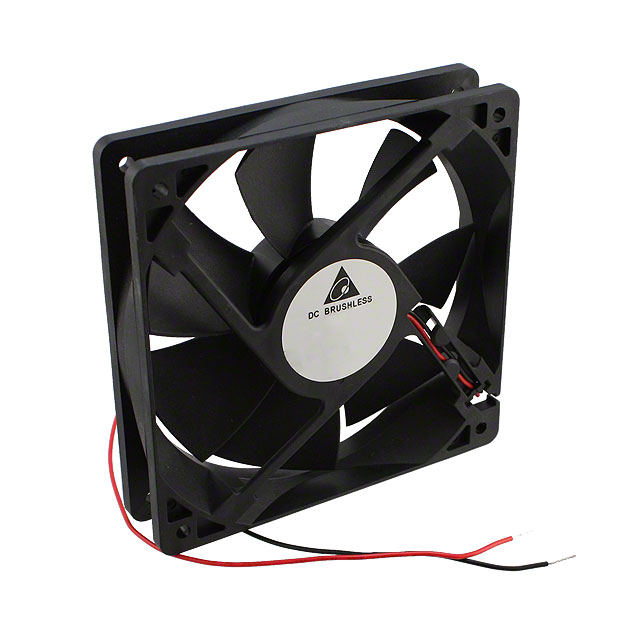

AUB1212H-CK15

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AUB1212H-CK15

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Superflo
Current Rating (Amps)	270 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.24 W
RPM	2200 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	220 g
Weight	0.485 lb
Width [y]	25.4 mm

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Static Pressure	Static Pressure	Termination	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Current Rating (Amps)	Bearing Type	Noise	Approval Agency	Voltage - Rated	Width [y]	Air Flow	Air Flow	RPM	Lifetime @ Temp.	Features
Delta Electronics AUB1212M	-10 °C	-10 °C	60 °C	60 °C	2.16 W	7 V	13.8 VDC	Plastic	Plastic	50.6 Pa	0.203 in H2O	2 Wire Leads	198 g	0.437 lb	120 mm	120 mm	Tubeaxial	0.18 A	Superflo	35.5 dB	CE CSA UL VDE	12 VDC	25.4 mm	73.8 CFM	2.07 mł/min	2200 RPM	50000 Hrs
Delta Electronics AUB1212H-CK15	-10 °C	-10 °C	60 °C	60 °C	3.24 W	10.8 VDC	13.2 VDC	Plastic	Plastic			4 Wire Leads	220 g	0.485 lb	120 mm	120 mm	Tubeaxial	270 mA	Superflo	38 dB(A)	CE CSA UL VDE	12 VDC	25.4 mm			2200 RPM	50000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Superflo 88.6 CFM (2.48m³/min) 4 Wire Leads
