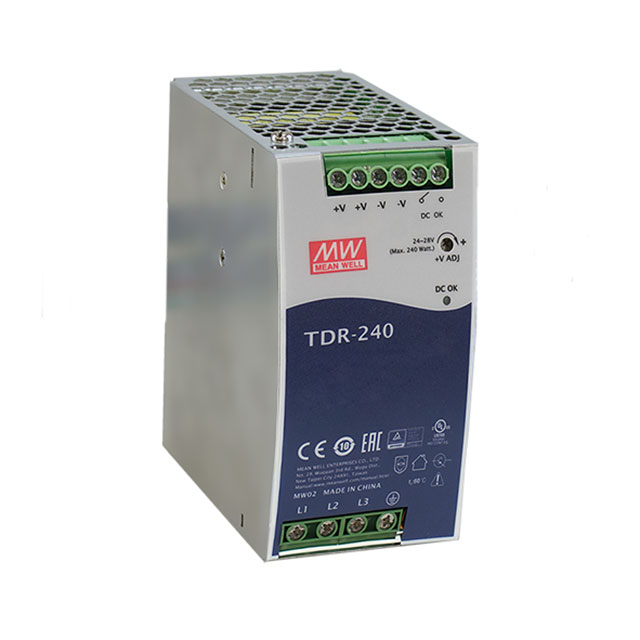

TDR-240-24
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 24V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDR-240-24
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 24V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDR-240-24 |
|---|---|
| AC Voltage - Input [Max] | 550 VAC |
| AC Voltage - Input [Min] | 340 VAC |
| Applications | Laboratory |
| Approval Agency | EAC, TUV, CE, UL |
| Current - Output (Max) [Max] | 10 A |
| DC Voltage - Input (Max) [Max] | 780 V |
| DC Voltage - Input (Min) [Min] | 480 V |
| Efficiency | 92 % |
| Features | Adjustable Output, PFC |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 113.5 mm |
| Size / Dimension [x] | 4.47 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 4.93 in |
| Size / Dimension [z] | 125.2 mm |
| Voltage - Isolation | 4.87 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 94.28 | |
| 5 | $ 87.41 | |||
| 10 | $ 84.61 | |||
| 25 | $ 81.05 | |||
Description
General part information
TDR-240 Series
AC/DC DIN RAIL SUPPLY 24V 240W
