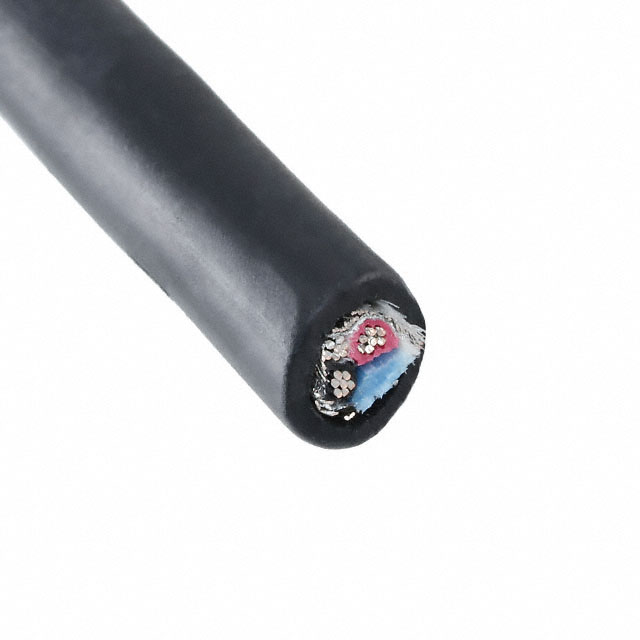

25152 BK199
ActiveALPHA WIRE
CABLE 2COND 20AWG BLK SHLD FEET
Deep-Dive with AI
Search across all available documentation for this part.
25152 BK199
ActiveALPHA WIRE
CABLE 2COND 20AWG BLK SHLD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25152 BK199 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.236 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 |
| Shield Coverage | 70 %, 100 % |
| Shield Material | Copper, Tinned, Suprashield® |
| Shield Type | Foil, Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 9.68 | |
| 2 | $ 9.21 | |||
| 3 | $ 8.96 | |||
| 5 | $ 8.64 | |||
| 7 | $ 8.44 | |||
| 10 | $ 8.22 | |||
| 25 | $ 7.70 | |||
| 50 | $ 7.33 | |||
| 100 | $ 6.97 | |||
Description
General part information
25152 Series
2 Conductor Multi-Conductor Cable Black 20 AWG Foil, Braid Enter Number of Feet in Order Quantity
