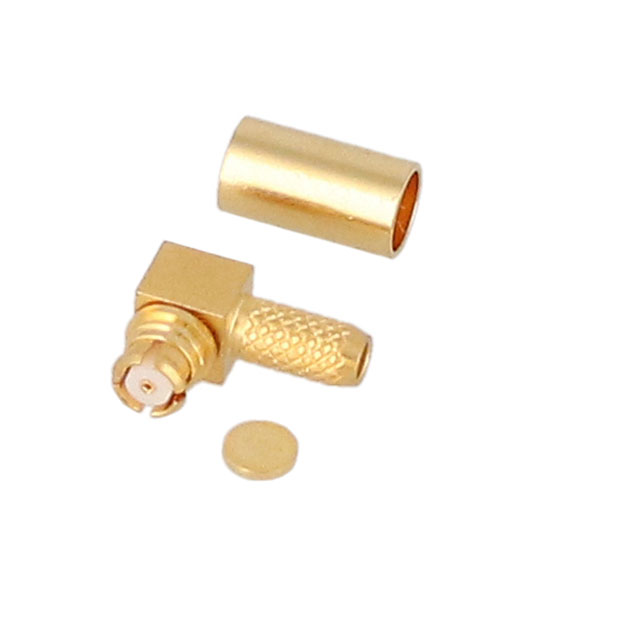

19K201-303L5

Active

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	19K201-303L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Center Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Cable Group	Body Material	Impedance	Housing Color	Number of Ports	Frequency - Max [Max]	Body Finish	Includes	Contact Termination	Voltage Rating	Mounting Type	Center Contact Plating	Shield Termination
Rosenberger 19K201-302L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	155 °C	-65 ░C	Female Socket Jack	Snap-On	188A 316 RG-174A	Brass	50 Ohms	Gold	1	26.5 GHz	Gold	1 Connector 1 End Cap	Solder	335 V	Free Hanging (In-Line) Right Angle	Gold	Crimp
Rosenberger 19K201-303L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	155 °C	-65 ░C	Female Socket Jack	Snap-On	RG-316	Brass	50 Ohms	Gold	1	26.5 GHz	Gold	1 Connector 1 End Cap	Solder	335 V	Free Hanging (In-Line) Right Angle	Gold	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
