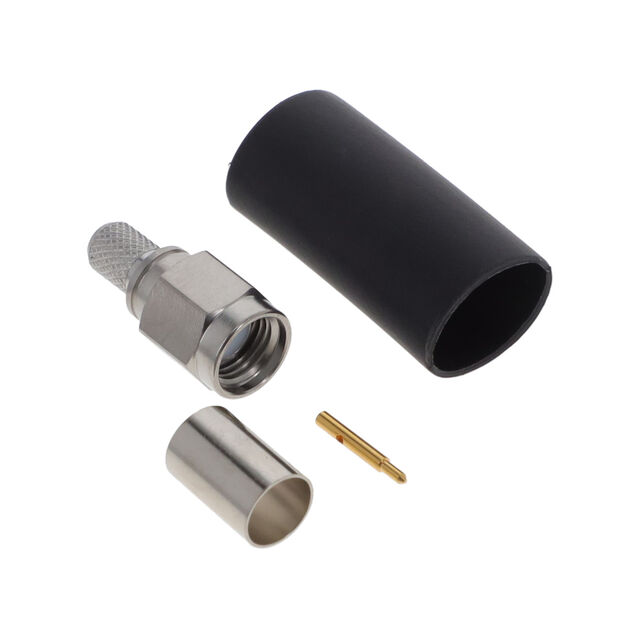

SF2900-6001

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	SF2900-6001

Body Material	Stainless Steel
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Body Material	Mating Cycles	Mounting Type	Number of Ports	Center Contact Plating	Includes	Housing Color	Shield Termination	Connector Style	Dielectric Material	Cable Group	Cable Group	Connector Type	Impedance	Frequency - Max [Max]	Contact Termination	Center Contact Material
Amphenol SV Microwave SF2900-6001	Stainless Steel	500	Free Hanging (In-Line)	1	Gold	1 Heat Shrink 2 pcs - 1 Connector	Silver	Crimp	SMA	Polytetrafluoroethylene (PTFE)	RG-55	142 223 400	Male Pin Plug	50 Ohms	12.4 GHz	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
