6909-1002-030

Obsolete

TE Connectivity Measurement Specialties

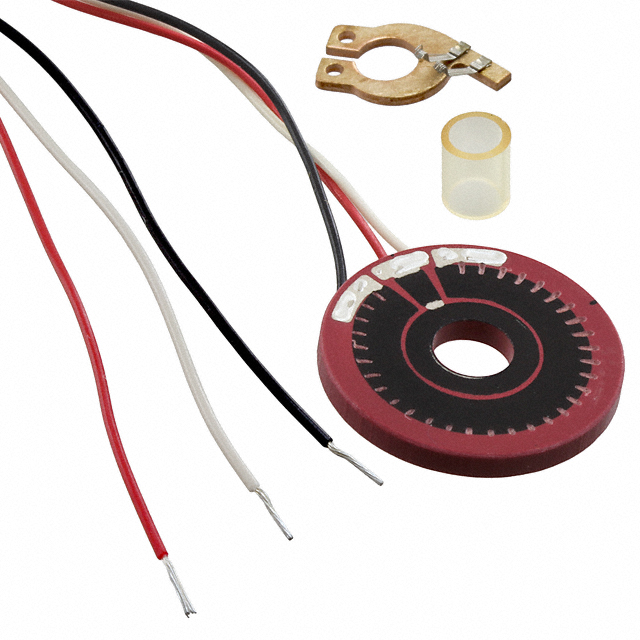

SENSOR ROTARY 340DEG WIRE LEADS

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR ROTARY 340DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	6909-1002-030

Actuator Type	Exposed Element - Rotary
For Measuring	Rotary Position
Linearity	0.5 %
Mounting Type	Custom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Output	Resistive
Output Signal	Clockwise Increase
Package / Case	Wire Leads, Ring
Resistance	5 kOhms
Resistance Tolerance	10%
Rotation Angle - Electrical, Mechanical [Max]	340 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Resistive
Termination Style	Wire Leads

Part	Technology	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Linearity	Resistance Tolerance	Resistance	Termination Style	Actuator Type	Mounting Type	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Output	Output Signal	For Measuring
TE Connectivity Measurement Specialties 6909-1002-030	Resistive	Ring Wire Leads	125 °C	-65 ░C	0.5 %	10%	5 kOhms	Wire Leads	Exposed Element - Rotary	Custom	0 °	340 °	Resistive	Clockwise Increase	Rotary Position
