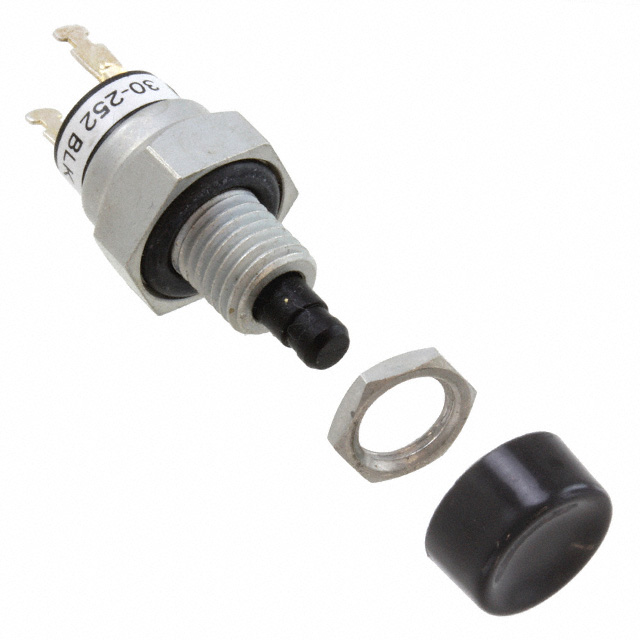

30-252 BLK

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 1A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 1A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	30-252 BLK

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	1 A
Electrical Life	250000 Cycles
Features	Sealed - Fully
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Part	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Switch Function	Circuit	Features	Panel Cutout Dimensions [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mounting Type	Termination Style	Color - Actuator/Cap
Grayhill Inc. 30-252 BLK-EW	Button Round	115 V	1 A	No Marking	On-Mom	SPST-NC	Epoxy Sealed Terminals	6.75 mm	Standard	85 °C	-40 °C	250000 Cycles	Panel Mount Rear	Wire Leads	Black
Grayhill Inc. 30-252 RED	Button Round	115 V	1 A	No Marking	On-Mom	SPST-NC	Sealed - Fully	6.75 mm	Standard	85 °C	-40 °C	250000 Cycles	Panel Mount Rear	Solder Lug	Red
Grayhill Inc. 30-252 BLK	Button Round	115 V	1 A	No Marking	On-Mom	SPST-NC	Sealed - Fully	6.75 mm	Standard	85 °C	-40 °C	250000 Cycles	Panel Mount Rear	Solder Lug	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
