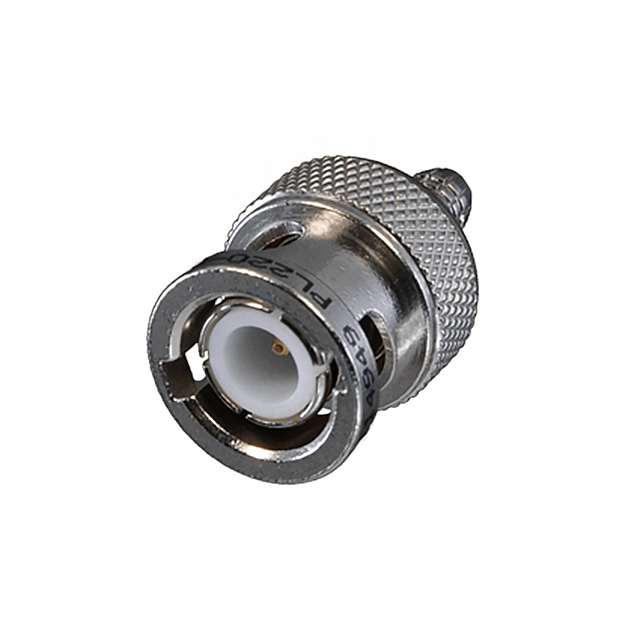

PL220-011

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PL220-011

Body Finish	Nickel
Body Material	Brass
Cable Group	141, 303, RG-58
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Impedance	Cable Group	Connector Style	Center Contact Plating	Number of Ports	Mounting Type	Voltage Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Connector Type	Housing Color	Frequency - Max [Max]	Dielectric Material	Body Finish	Body Material	Contact Termination
Cinch Connectivity Solutions Trompeter PL220-003	50 Ohms	188 316 RG-174	BNC	Gold	1	Free Hanging (In-Line)	500 V	Bayonet Lock	-65 ░C	165 °C	Crimp	Male Pin Plug	Silver	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Crimp
Cinch Connectivity Solutions Trompeter PL220-011	50 Ohms	141 303 RG-58	BNC	Gold	1	Free Hanging (In-Line)	500 V	Bayonet Lock	-65 ░C	165 °C	Crimp	Male Pin Plug	Silver	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
