11047-12-1-0500-011-1-TS

Active

CnC Tech, LLC

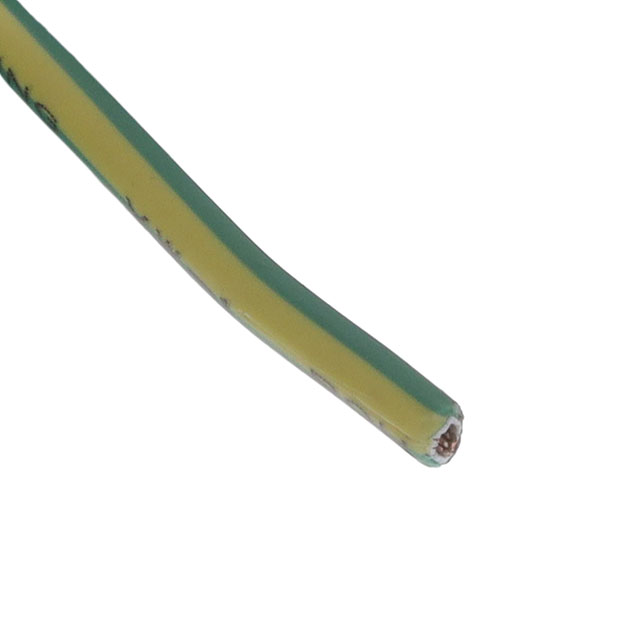

HOOK-UP STRND 12AWG GREEN/YELLOW

Search across all available documentation for this part.

Active

CnC Tech, LLC

HOOK-UP STRND 12AWG GREEN/YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	11047-12-1-0500-011-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0092 in
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Green, Yellow
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 11047
Voltage	600 V
Wire Gauge	12 AWG

Part	Jacket Color	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
CnC Tech, LLC 11047-12-1-0500-005-1-TS	Blue	Hook-Up	600 V	3.81 mm	0.15 in	UL Style 11047	Polyphenylene Ether (PPE)	19	0.0092 in	Copper Tinned	500 '	152.4 m	105 ░C	-10 °C	12 AWG	0.38 mm	0.015 in
CnC Tech, LLC 11047-12-1-0500-008-1-TS	Orange	Hook-Up	600 V	3.81 mm	0.15 in	UL Style 11047	Polyphenylene Ether (PPE)	19	0.0092 in	Copper Tinned	500 '	152.4 m	105 ░C	-10 °C	12 AWG	0.38 mm	0.015 in
CnC Tech, LLC 11047-12-1-0500-011-1-TS	Green Yellow	Hook-Up	600 V	3.81 mm	0.15 in	UL Style 11047	Polyphenylene Ether (PPE)	19	0.0092 in	Copper Tinned	500 '	152.4 m	105 ░C	-10 °C	12 AWG	0.38 mm	0.015 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 1.39

General part information

12 AWG Hook-Up Wire 19/0.0092" Green, Yellow 600V 500.0' (152.4m)
