NAR163B

Obsolete

Stanley Electric Co

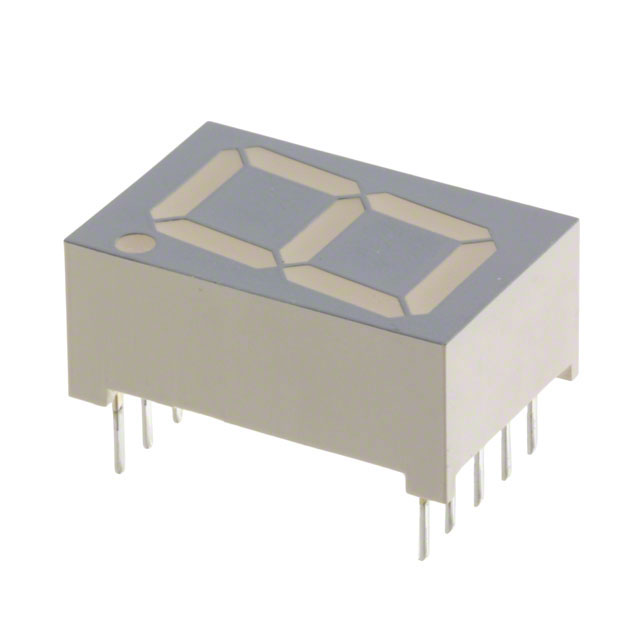

DISPLAY 7-SEG 0.6" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 161, 163 Series

NAR163B

Obsolete

Stanley Electric Co

DISPLAY 7-SEG 0.6" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet 161, 163 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NAR163B

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size [x]	0.6 in
Digit/Alpha Size [x]	15.24 mm
Display Type	7-Segment
Millicandela Rating	12 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Size / Dimension [x]	19 mm
Size / Dimension [x]	0.748 in
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	1.7 V
Wavelength - Peak	660 nm

NAR163 Series

Part	Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Millicandela Rating	Number of Characters [custom]	Digit/Alpha Size [x]	Digit/Alpha Size [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Common Pin	Display Type	Wavelength - Peak	Color
Stanley Electric Co NAR163-C
Stanley Electric Co NAR163B	20 mA	1.7 V	0.6 in	15.24 mm	10-DIP	12 mcd	1	0.6 in	15.24 mm	19 mm	0.492 "	0.748 in	12.5 mm	0.315 "	8 mm	Common Anode	7-Segment	660 nm	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NAR163 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.7V 20mA 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) 10-DIP (0.600", 15.24mm)
