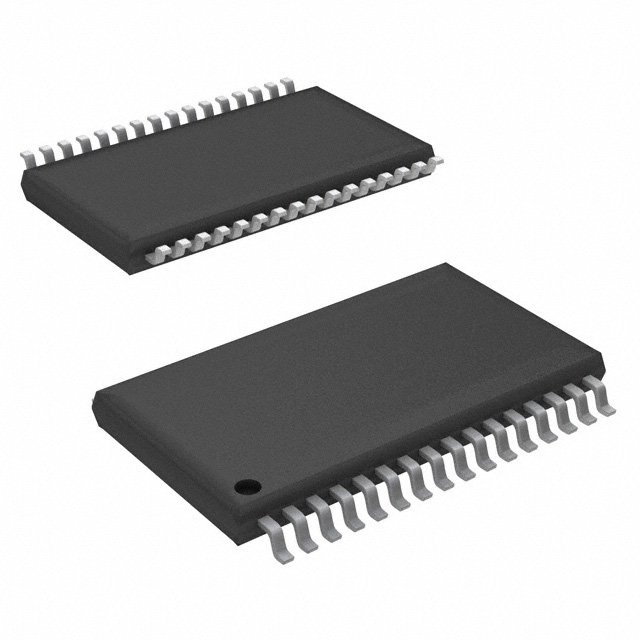

S3F8S39XZZ-SO99
ActiveZilog
IC MCU 8BIT 32KB FLASH 32SOP
Deep-Dive with AI
Search across all available documentation for this part.
S3F8S39XZZ-SO99
ActiveZilog
IC MCU 8BIT 32KB FLASH 32SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S3F8S39XZZ-SO99 |
|---|---|
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | SAM8RC |
| Core Size | 8-Bit |
| Data Converters [custom] | 10 |
| Data Converters [custom] | 16 |
| Mounting Type | Surface Mount |
| Number of I/O | 26 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 32-SOIC |
| Peripherals | WDT, LVD, LVR, LCD, PWM |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 12 MHz |
| Supplier Device Package | 32-SOP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S3F8S39 Series
SAM8RC S3F8 Microcontroller IC 8-Bit 12MHz 32KB (32K x 8) FLASH 32-SOP
