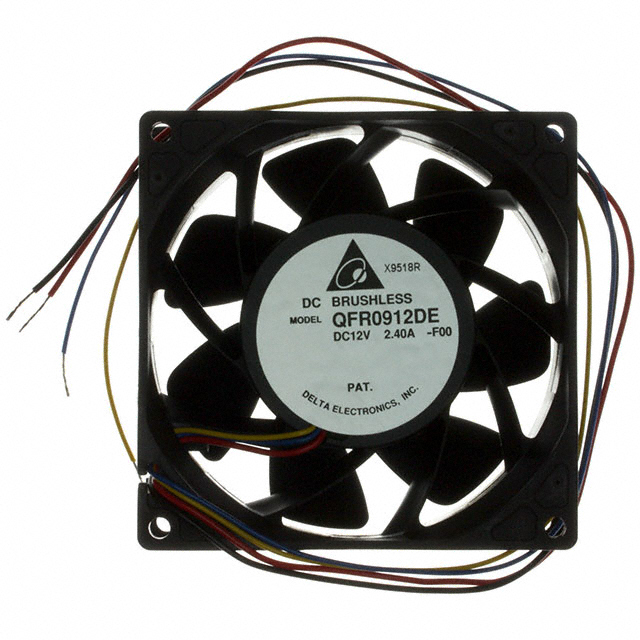

QFR0912DE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	QFR0912DE-F00

Air Flow	131.8 CFM
Air Flow	3.69 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	62 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	8300 RPM
Static Pressure	365.2 Pa
Static Pressure	1.466 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8 VDC
Weight	0.43 lb
Weight	195.04 g
Width [y]	38 mm

Part	Air Flow	Air Flow	Fan Type	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Width [y]	Lifetime @ Temp.	Weight	Weight	Approval Agency	Power (Watts)	Static Pressure	Static Pressure	Features	Material - Blade	Current Rating (Amps)	RPM	Bearing Type	Termination	Voltage - Rated
Delta Electronics QFR0912VH-SP00	2.09 m³/min	74.8 CFM	Tubeaxial	Plastic	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	45 dB(A)	25.4 mm	70000 Hrs	0.243 lb	110.22 g	CE cURus VDE	4.8 W	0.339 in H2O	84.5 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	400 mA	4200 RPM	Ball	4 Wire Leads	12 VDC
Delta Electronics QFR0912UHE-SP01	3.69 m³/min	131.8 CFM	Tubeaxial	Plastic	13.2 VDC	8 VDC	70 °C	70 °C	-10 °C	-10 °C	62 dB(A)	38 mm	50000 Hrs	0.43 lb	195.04 g	CE CSA UL VDE	19.2 W	1.466 in H2O	365.2 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	1.6 A	8300 RPM	Ball	4 Wire Leads	12 VDC
Delta Electronics QFR0912EHE-F00			Tubeaxial	Plastic	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	51.7 dB(A)	38 mm	70000 Hrs	0.43 lb	195.04 g	CE CSA UL VDE	7.2 W	0.711 in H2O	177.1 Pa	Locked Rotor Protection Speed Sensor (Tach)	Plastic	600 mA	5700 RPM	Ball	3 Wire Leads	12 VDC
Delta Electronics QFR0912DE-F00	3.69 m³/min	131.8 CFM	Tubeaxial	Plastic	13.2 VDC	8 VDC	70 °C	70 °C	-10 °C	-10 °C	62 dB(A)	38 mm	50000 Hrs	0.43 lb	195.04 g	CE CSA UL VDE	19.2 W	1.466 in H2O	365.2 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	1.6 A	8300 RPM	Ball	4 Wire Leads	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 131.8 CFM (3.69m³/min) 4 Wire Leads
