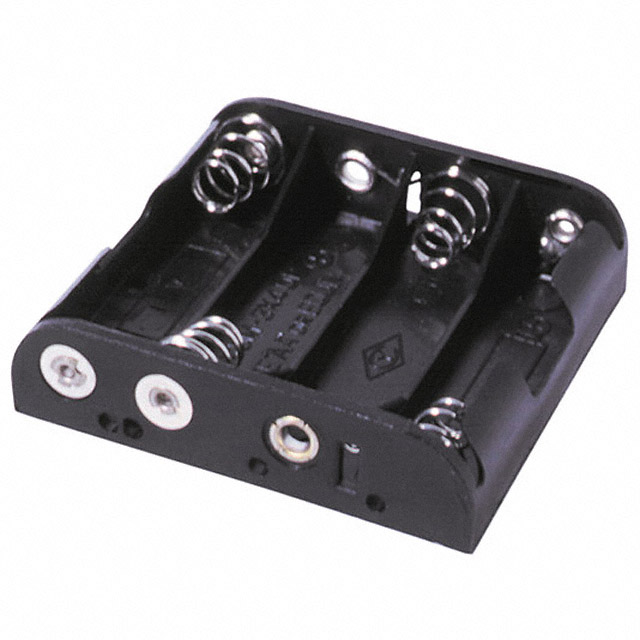

BC4AAB
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER AA 4 CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BC4AAB
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER AA 4 CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BC4AAB |
|---|---|
| Battery Cell Size | AA |
| Battery Type, Function | Cylindrical, Holder |
| Height Above Board | 15.44 mm |
| Height Above Board | 0.608 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 4 |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
BC4AA Series
| Part | Battery Type, Function | Style | Height Above Board | Height Above Board | Termination Style | Number of Cells | Battery Cell Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | 15.5 mm | 0.61 in | Wire Leads - 6" (152.4mm) | 4 | AA | Chassis Mount |
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | Wire Leads - 6" (152.4mm) | 4 | AAA | Chassis Mount | ||
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | 12.19 mm | 0.48 in | PC Pin | 4 | AAA | |
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | 9 Volt Snap Fasteners | 4 | AA | Chassis Mount | ||
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | 15.5 mm | 0.61 in | PC Pin | 4 | AA | |
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | Solder Lug | 4 | AA | Chassis Mount | ||
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | Solder Lug | 4 | AAA | Chassis Mount | ||
MPD (Memory Protection Devices) | Cylindrical Holder | Holder (Open) | 15.44 mm | 0.608 in | SMD (SMT) Tab | 4 | AA | PCB Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.88 | |
| 10 | $ 2.42 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.00 | |||
| 300 | $ 1.84 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.61 | |||
| 2500 | $ 1.46 | |||
| 5000 | $ 1.33 | |||
Description
General part information
BC4AA Series
Battery Holder (Open) AA 4 Cell SMD (SMT) Tab
Documents
Technical documentation and resources
No documents available
