DK-NIOS-2S60N

Obsolete

Altera

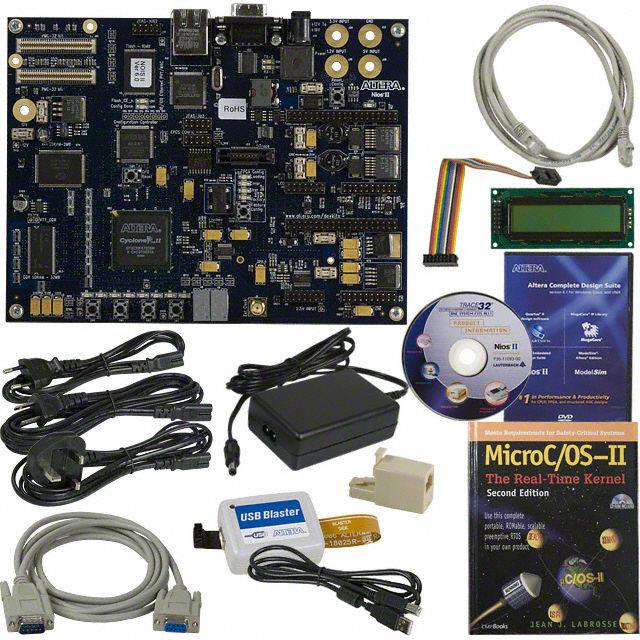

NIOS II KIT W/STRATIX II EP2S60N

Search across all available documentation for this part.

Obsolete

Altera

NIOS II KIT W/STRATIX II EP2S60N

Technical Specifications

Parameters and characteristics for this part

Specification	DK-NIOS-2S60N

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	EP2S60
Platform	Stratix II FPGA Nios II
Suggested Programming Environment	Quartus II
Utilized IC / Part	EP2S60

Part	Total RAM Bits	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of LABs/CLBs	Mounting Type	Number of Logic Elements/Cells	Number of I/O	Supplier Device Package	Utilized IC / Part	Contents	Platform	Suggested Programming Environment	For Use With/Related Products
Altera EP2S60F672C3	2544192 bits	672-BBGA	0 °C	85 °C	3022	Surface Mount	60440	492
Altera EP2S60F484I4N	2544192 bits	484-BBGA	-40 C	100 °C	3022	Surface Mount	60440	334	484-FBGA (23x23)
Altera DK-NIOS-2S60N										EP2S60	Board(s) Cable(s) Power Supply	Stratix II FPGA Nios II	Quartus II	EP2S60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stratix II FPGA Nios II EP2S60 Stratix® II FPGA Evaluation Board
