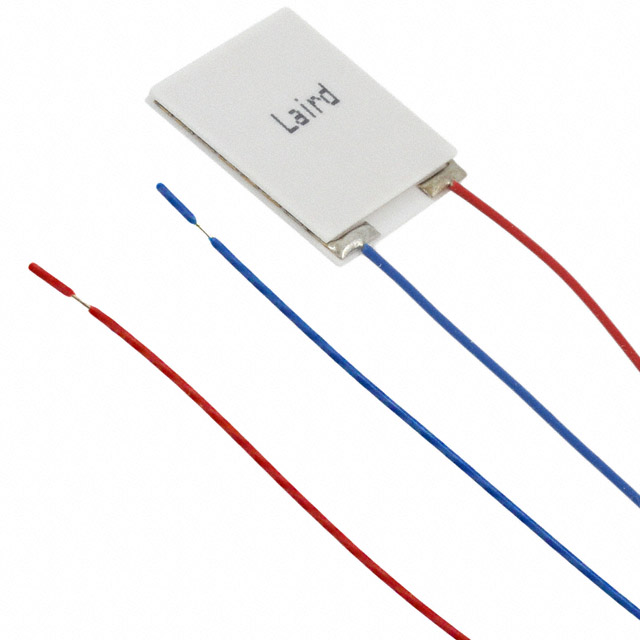

430745-510
Laird Thermal Systems, Inc.
PELTIER MOD UT8,12,F2,2525,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430745-510
Laird Thermal Systems, Inc.
PELTIER MOD UT8,12,F2,2525,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430745-510 |
|---|---|
| Current - Max [Max] | 7.9 A |
| Delta Tmax @ Th | 69 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 1.96 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 69 W |
| Resistance | 1.68 Ohms |
| Size / Dimension [x] | 26.92 mm |
| Size / Dimension [y] | 24.56 mm |
| Voltage - Max [Max] | 14.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.82 | |
| 50 | $ 46.35 | |||
| 100 | $ 45.11 | |||
Description
General part information
430745 Series
Peltier Module 69.0W @ 25°C 7.9 A 80°C
