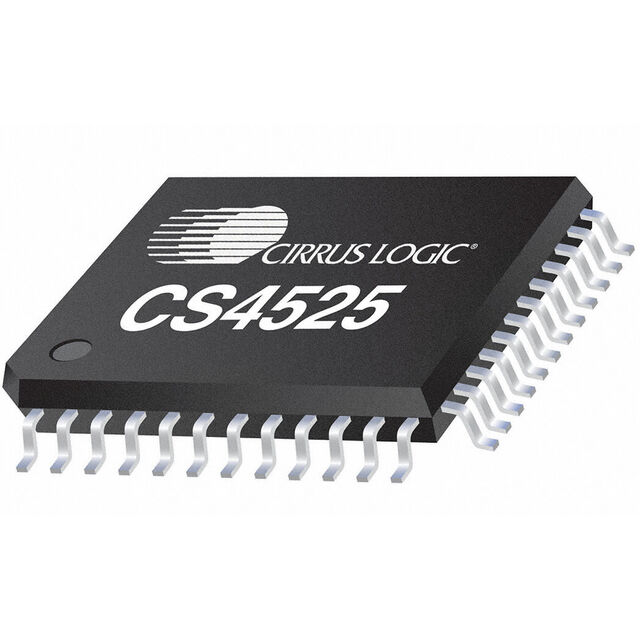

CS4525-CNZ

Obsolete

Cirrus Logic Inc.

IC AMP D DUAL/QUAD 30W 48QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC AMP D DUAL/QUAD 30W 48QFN

Technical Specifications

Parameters and characteristics for this part

Specification	CS4525-CNZ

Features	Depop, I2S, Volume Control, ADC, PWM, I2C, Mute, Short-Circuit and Thermal Protection
Max Output Power x Channels @ Load	15 W, 30 W
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Output Type	4-Channel (Quad), 2-Channel (Stereo)
Package / Case	48-QFN
Supplier Device Package	48-QFN-EP (9x9)
Type	Class D
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	8 V

Part	Mounting Type	Features	Max Output Power x Channels @ Load	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Supplier Device Package
Cirrus Logic Inc. CS4525-CNZR	Surface Mount	ADC Depop I2C I2S Mute PWM Short-Circuit and Thermal Protection Volume Control	15 W 30 W	2-Channel (Stereo) 4-Channel (Quad)	-10 °C	70 °C	Class D	8 V	18 V	48-QFN	48-QFN-EP (9x9)
Cirrus Logic Inc. CS4525-CNZ	Surface Mount	ADC Depop I2C I2S Mute PWM Short-Circuit and Thermal Protection Volume Control	15 W 30 W	2-Channel (Stereo) 4-Channel (Quad)	-10 °C	70 °C	Class D	8 V	18 V	48-QFN	48-QFN-EP (9x9)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) or 4-Channel (Quad) Class D 48-QFN-EP (9x9)
