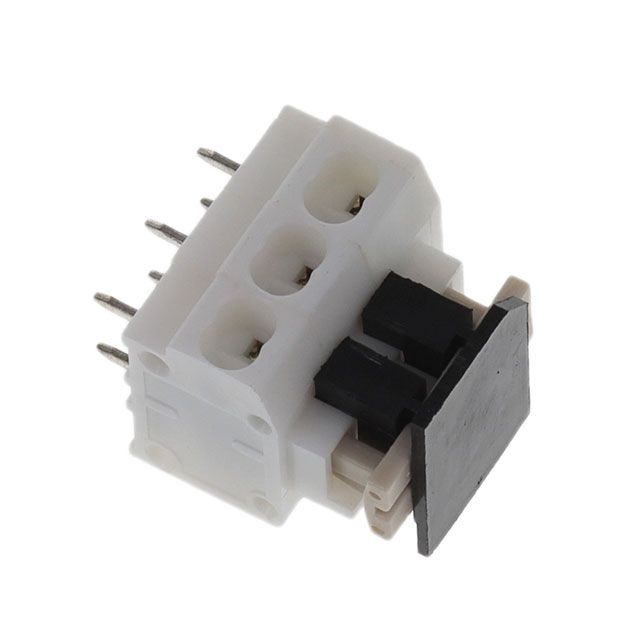

HB0302900090G

Active

Amphenol Anytek

HB-5.0-3P WHITE DOUBLE-ENTRY PLA

Search across all available documentation for this part.

Active

Amphenol Anytek

HB-5.0-3P WHITE DOUBLE-ENTRY PLA

Technical Specifications

Parameters and characteristics for this part

Specification	HB0302900090G

Clamp Material - Plating	Stainless, Steel
Color	White
Contact Material - Plating [custom]	Brass - Tin Plated
Current	10 A
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	17.5 AWG
Wire Termination	Screwless - Push Button Clamp

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Positions Per Level	Contact Material - Plating [custom]	Mounting Type	Mating Orientation	Current	Pitch [x]	Pitch [x]	Voltage	Wire Termination	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating
Amphenol Anytek HB0302900090G	-40 °C	115 °C	White	3	Brass - Tin Plated	Through Hole	Horizontal with Board	10 A	5 mm	0.197 in	300 V	Screwless - Push Button Clamp	1	24 AWG	17.5 AWG	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Technical documentation and resources

No documents available
