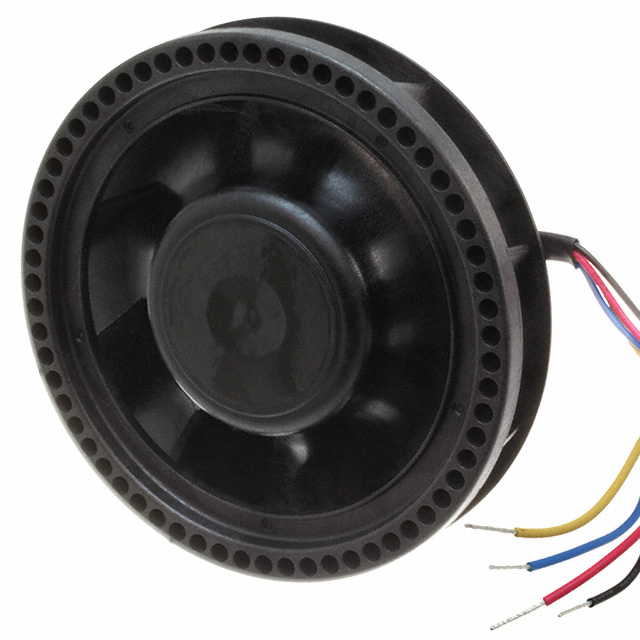

TCA1048AB0C

Obsolete

Delta Electronics

FAN IMP MTRZD 100X24.8MM 48VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN IMP MTRZD 100X24.8MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TCA1048AB0C

Air Flow	68.8 CFM
Air Flow	1.93 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	390 mA
Fan Type	Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	18.72 W
RPM	6700 RPM
Size / Dimension [diameter]	100 mm
Static Pressure	1.895 in H2O
Static Pressure	472 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Width [x]	24.8 mm

Part	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Bearing Type	Size / Dimension [diameter]	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Termination	Ingress Protection	Features	Power (Watts)	Current Rating (Amps)	Approval Agency	Material - Blade	RPM	Voltage - Rated [custom]	Width [x]	Air Flow	Air Flow	Material - Frame
Delta Electronics TCA1048AB0C	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	65 dB	Ball	100 mm	Motorized Impellers	60 V	36 VDC	1.895 in H2O	472 Pa	4 Wire Leads	IP55 - Dust Protected Water Resistant	Locked Rotor Protection PWM Control Speed Sensor (Tach)	18.72 W	390 mA	CE cURus TUV	Plastic	6700 RPM	48 VDC	24.8 mm	68.8 CFM	1.93 m³/min	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 48VDC Round - 100mm Dia Ball 68.8 CFM (1.93m³/min) 4 Wire Leads
