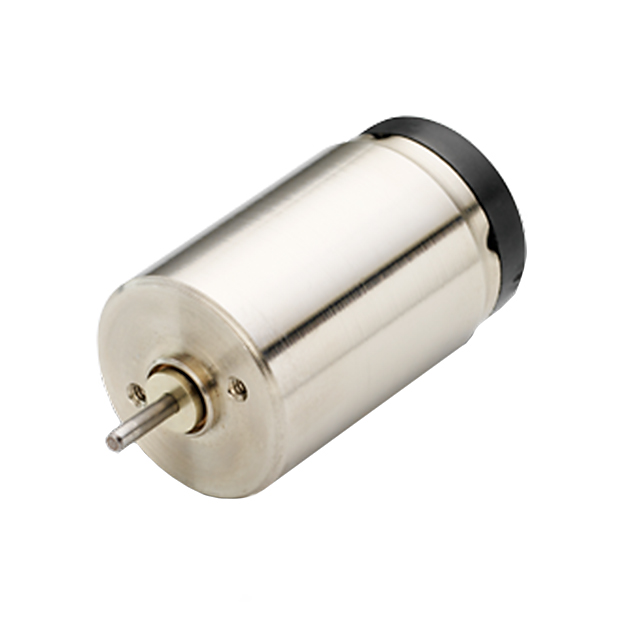

17N78-208E.1

Active

Portescap

STANDARD MOTOR 10000 RPM 18V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 18V

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Weight	Weight	Function	Type	Motor Type	Power - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	RPM
Portescap 17N78-216E.1	0.669 in	17 mm	10 mm	0.394 in	0.06 lb	27.22 g	Standard	DC Motor	Brushed	3.6 W	-30 ░C	85 °C	5.69 mNm	0.81 oz-in	Solder Tab	0.059 in	1.5 mm	6 VDC	7.5 mm	0.295 in	10000 RPM
Portescap 17N78-208E.1	0.669 in	17 mm	10 mm	0.394 in	0.06 lb	27.22 g	Standard	DC Motor	Brushed	3.2 W	-30 ░C	85 °C	4.89 mNm	0.69 oz-in	Solder Tab	0.059 in	1.5 mm	18 VDC	7.5 mm	0.295 in	10000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 108.35

General part information

Brushed DC Motor Standard 10000 RPM 3.2W 18VDC

Technical documentation and resources

No documents available
