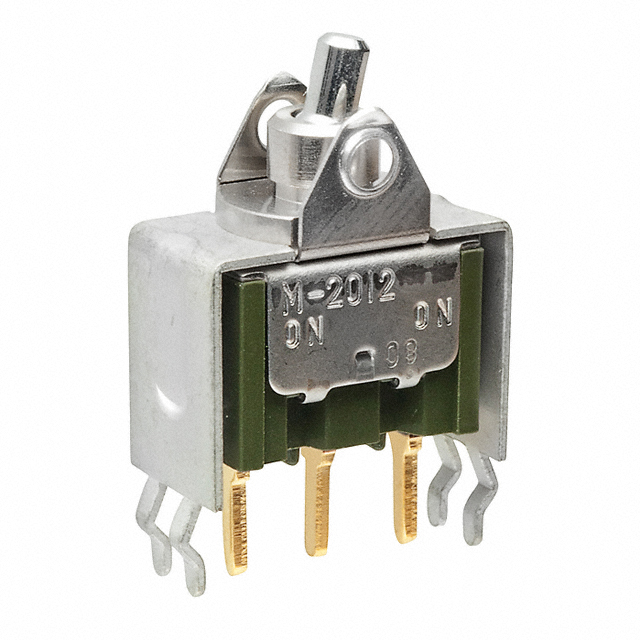

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012TXG13/108

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012TXG13/108

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2012TX Series

Part	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Circuit	Current Rating (Amps)	Mounting Type	Termination Style	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Actuator Marking	Electrical Life	Color - Actuator/Cap
NKK Switches M2012TXG13/108	Epoxy Sealed Terminals	Actuator Arm Cap Required	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	Varies by Cap	50000 Cycles
NKK Switches M2012TXG30-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole Right Angle	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Red
NKK Switches M2012TXW13-DG	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Blue
NKK Switches M2012TXW13-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Red
NKK Switches M2012TXG13-EA	Epoxy Sealed Terminals	Paddle	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Black
NKK Switches M2012TXW30-FA	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole Right Angle	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black
NKK Switches M2012TXW41-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Right Angle Through Hole Vertical	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Red
NKK Switches M2012TXG13-FC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Red
NKK Switches M2012TXW13-EA	Epoxy Sealed Terminals	Paddle	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black
NKK Switches M2012TXW30-DA	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole Right Angle	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M2012TX Series

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
