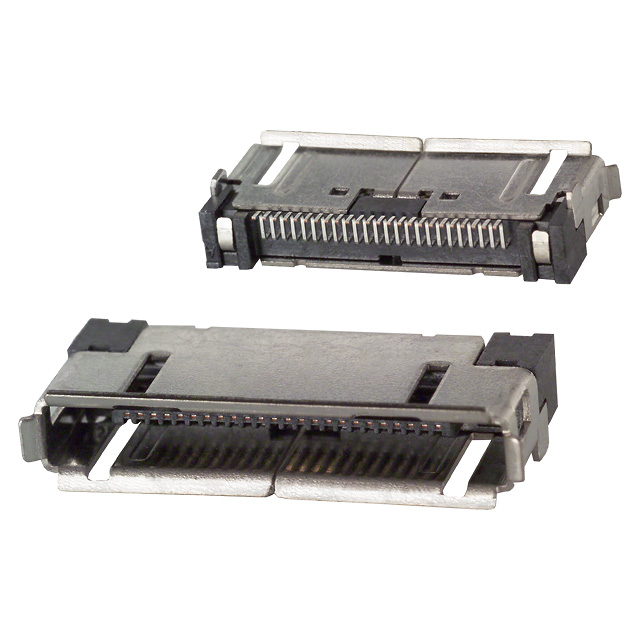

ST60-24P(51)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 24P 0.02 GOLD EDGE MNT

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 24P 0.02 GOLD EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	ST60-24P(51)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Amps)	0.5 A
Fastening Type	Latch Holder
Features	Shielded, Board Guide
Insulation Color	Black
Insulation Height	0.118 in
Insulation Height	3 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Right Angle, Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Termination	Contact Finish - Mating	Connector Type	Material Flammability Rating	Fastening Type	Voltage Rating	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Contact Material	Current Rating (Amps)	Contact Type	Style	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Applications	Features	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. ST60-24P(31)	Solder	Gold	Receptacle	UL94 V-0	Latch Holder	100 VAC	1	0.118 in	3 mm	24	Copper Alloy	0.5 A	Non-Gendered	Board to Cable/Wire	All	Board Edge Right Angle Surface Mount	0.02 in	0.5 mm	Black	General Purpose Telecommunications	Board Guide Shielded	Liquid Crystal Polymer (LCP)	-30 ░C	80 C
Hirose Electric USA, Inc. ST60-24P(50)	Solder	Gold	Receptacle	UL94 V-0	Latch Holder	100 VAC	1	0.118 in	3 mm	24	Copper Alloy	0.5 A	Non-Gendered	Board to Cable/Wire	All	Board Edge Right Angle Surface Mount	0.02 in	0.5 mm	Black	General Purpose Telecommunications	Board Guide Shielded	Liquid Crystal Polymer (LCP)	-30 ░C	80 C
Hirose Electric USA, Inc. ST60-24P(51)	Solder	Gold	Receptacle	UL94 V-0	Latch Holder	100 VAC	1	0.118 in	3 mm	24	Copper Alloy	0.5 A	Non-Gendered	Board to Cable/Wire	All	Board Edge Right Angle Surface Mount	0.02 in	0.5 mm	Black	General Purpose Telecommunications	Board Guide Shielded	Liquid Crystal Polymer (LCP)	-30 ░C	80 C	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Receptacle Connector 0.020" (0.50mm) Board Edge, Surface Mount, Right Angle Gold
