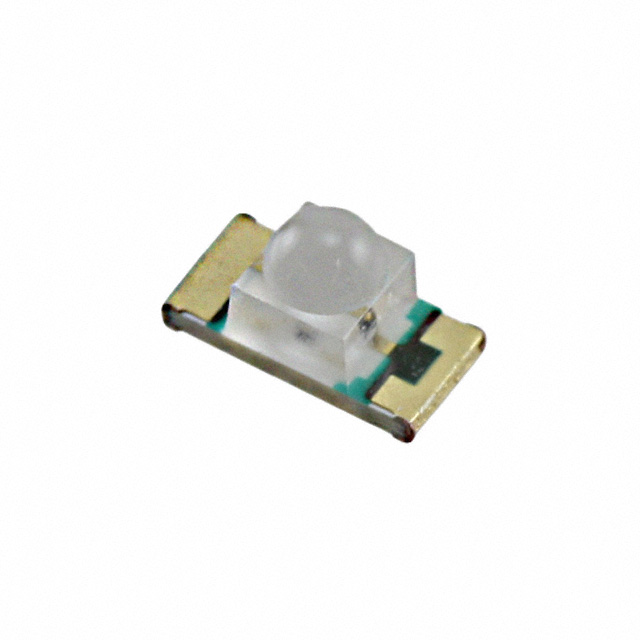

IR26-21C/L110/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR26-21C/L110/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR26-21C/L110/TR8 |
|---|---|
| Current - DC Forward (If) (Max) | 65 mA |
| Mounting Type | Surface Mount, Bottom Entry |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 1206 (3216 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 20 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| Tape & Reel (TR) | 1500 | $ 0.11 | ||
| 3000 | $ 0.11 | |||
| 4500 | $ 0.10 | |||
| 7500 | $ 0.10 | |||
| 10500 | $ 0.09 | |||
| 15000 | $ 0.09 | |||
| 37500 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
IR26-21 Series
Infrared (IR) Emitter 940nm 1.2V 65mA 1mW/sr @ 20mA 20° 1206 (3216 Metric)
