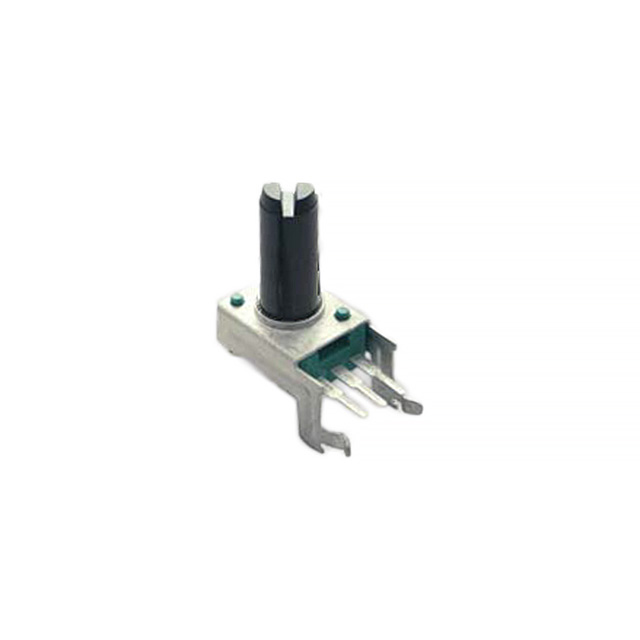

P090L-02F25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P090L-02F25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P090L-02F25BR10K

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	0.984 in
Actuator Length [x]	25 mm
Actuator Type	Flatted
Adjustment Type	Side Adjustment
Built in Switch	False
Mounting Type	Through Hole
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.03125 W
Power (Watts)	30 mW
Resistance (Ohms)	10k
Resistive Material	Conductive Plastic
Rotation	280 °
Size - Body [x]	0.61 "
Size - Body [x]	15.5 mm
Size - Body [y]	0.386 "
Size - Body [y]	9.8 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

P090L Series

Part	Actuator Length [z]	Actuator Length [z]	Number of Turns	Tolerance	Power (Watts)	Power (Watts)	Actuator Type	Adjustment Type	Resistance (Ohms)	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Mounting Type	Resistive Material	Termination Style	Taper	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Resistance (Ohms)	Built in Switch	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI P090L-01F20AR100K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Flatted	Side Adjustment	100 kOhms	1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Logarithmic	11 mm	9.8 mm	0.433 "	0.386 "
TT Electronics/BI P090L-02T20AR10K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Knurled	Side Adjustment		1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Logarithmic	15.5 mm	9.8 mm	0.61 "	0.386 "	10k
TT Electronics/BI P090L-01K20BR10K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Knurled	Side Adjustment		1	0.157 in	4 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	11 mm	9.8 mm	0.433 "	0.386 "	10k
TT Electronics/BI P090L-01K25BR20K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Knurled	Side Adjustment	20 kOhms	1	0.157 in	4 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	11 mm	9.8 mm	0.433 "	0.386 "
TT Electronics/BI P090L-02F20BR100K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Flatted	Side Adjustment	100 kOhms	1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	15.5 mm	9.8 mm	0.61 "	0.386 "
TT Electronics/BI P090L-02T20BR50K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Knurled	Side Adjustment	50 kOhms	1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	15.5 mm	9.8 mm	0.61 "	0.386 "
TT Electronics/BI P090L-02F20BR1MEG	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Flatted	Side Adjustment		1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	15.5 mm	9.8 mm	0.61 "	0.386 "	1M
TT Electronics/BI P090L-02F20AR50K	20 mm	0.787 in	1	20 %	0.03125 W	30 mW	Flatted	Side Adjustment	50 kOhms	1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Logarithmic	15.5 mm	9.8 mm	0.61 "	0.386 "
TT Electronics/BI P090L-11K35BR10K	35 mm	1.378 in	1	20 %	0.03125 W	30 mW	Knurled	Side Adjustment		1	0.157 in	4 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	11 mm	9.8 mm	0.433 "	0.386 "	10k	Detent
TT Electronics/BI P090L-02F25BR10K			1	20 %	0.03125 W	30 mW	Flatted	Side Adjustment		1	0.236 in	6 mm	280 °	Through Hole	Conductive Plastic	Board Locks PC Pins	Linear	15.5 mm	9.8 mm	0.61 "	0.386 "	10k		0.984 in	25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.56
		10	$ 1.31
		100	$ 1.10
		500	$ 0.98
		1350	$ 0.90
		5400	$ 0.81
		10800	$ 0.77

Description

General part information

P090L Series

10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Conductive Plastic 0.03W, 1/32W PC Pins, Board Locks
