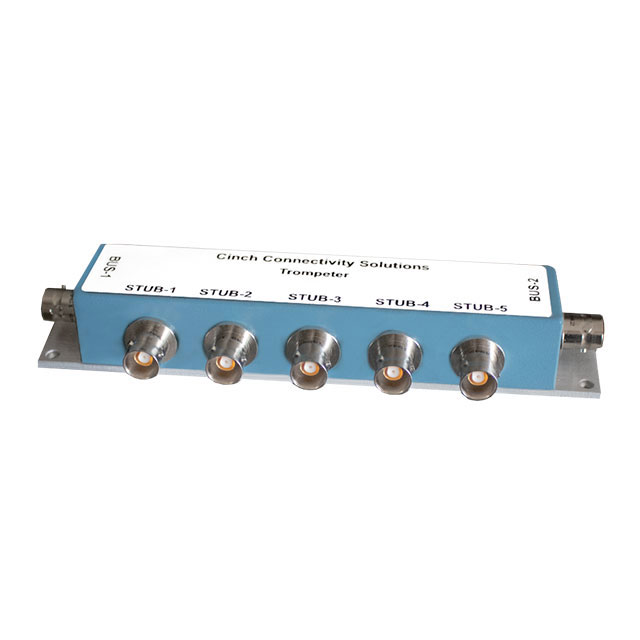

TEBC-1005-LF
ActiveCinch Connectivity Solutions Trompeter
MIL-STD-1553 DATA BUS COUPLER, 5
Deep-Dive with AI
Search across all available documentation for this part.
TEBC-1005-LF
ActiveCinch Connectivity Solutions Trompeter
MIL-STD-1553 DATA BUS COUPLER, 5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEBC-1005-LF |
|---|---|
| Adapter Series | TRB Twinaxial/Triaxial, Quint to TRB Twinaxial/Triaxial, Dual |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TRB Twinaxial/Triaxial Jack, Female Socket (5) |
| Convert To (Adapter End) | TRB Twinaxial/Triaxial Jack, Female Socket (2) |
| Fastening Type | Bayonet Lock |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 676.45 | |
| 10 | $ 666.46 | |||
Description
General part information
TEBC-10 Series
Adapter Coaxial Connector TRB Twinaxial/Triaxial Jack, Female Socket (5) To TRB Twinaxial/Triaxial Jack, Female Socket (2)
Documents
Technical documentation and resources
No documents available
